Overview of some often used Oracle 10g/11g/12c SQL Statements

Version : 3.6
Date : 30 November 2016
By : Albert van der Sel
Remark : Please refresh the page to see any updates.


It may take a few seconds to load this html page...

This note is organized in 2 parts:

Part 1: 10g/11g Statements (practically all will work in 12c as well)
Part 2: Specific 12c Statements


Part 1 was created while 10g and 11g were still courant versions of the RDBMS.
However, since 12c is availble, the note had to be extended with additional 12c specifics. Hence Part 2.

Part 1:

Main Contents Part 1: 10g/11g

1. ENABLE AND DISABLE A CONSTRAINT
2. DISABLE AND ENABLE TRIGGER
3. PROCESSES AND LOCKS
4. QUICK CHECK DATABASE NAME AND INSTANCE NAME
5. QUICK CHECK ON DATABASE FILES
6. QUICK CHECK ON BACKUP/RECOVERY RELATED EVENTS
7. EXAMPLES OF SOME COMMON CREATE STATEMENTS
8. GET THE SQL ISSUED AGAINST THE DATABASE
9. GET THE SGA PROPERTIES
10. CREATE AN "SPFILE.ORA" FROM AN "INIT.ORA" AND THE OTHER WAY AROUND
11. CREATE A COPY TABLE WITH ALL DATA
12. A FEW SIMPLE WAYS TO TRACE A SESSION
13. A FEW SIMPLE WAYS TO DETECT WAITS
14. CREATE A DATABASE USER
15. FINDING INVALID OBJECTS AND REPAIR
16. CREATING AND REBUILDING INDEXES
17. GETTING PRODUCT/PARAMETER INFORMATION
18. KILLING AN ORACLE SESSION
19. 9i,10g,11g INIT.ORA/SPFILE.ORA initialization parameters
20. DIAGNOSTIC TOOLS IN 9i: A FEW WORDS ON STATSPACK
21. USING A CURSOR IN PL/SQL LOOPS
22. EXECUTING SCRIPTS FROM THE "SQL>" PROMPT
23. USING CONTROLS, AND "FOR.." AND "WHILE.." LOOPS IN PL/SQL
24. HOW TO PUT SQLPLUS OUTPUT IN A SHELL VARIABLE
25. INSTANCE STARTUP OPTIONS
26. A FEW 10g,11g RMAN NOTES
27. HOW TO VIEW IF THE DATABASE IS DOING A LARGE ROLLBACK
28. A SIMPLE WAY TO CLONE A 9i/10g/11g DATABASE

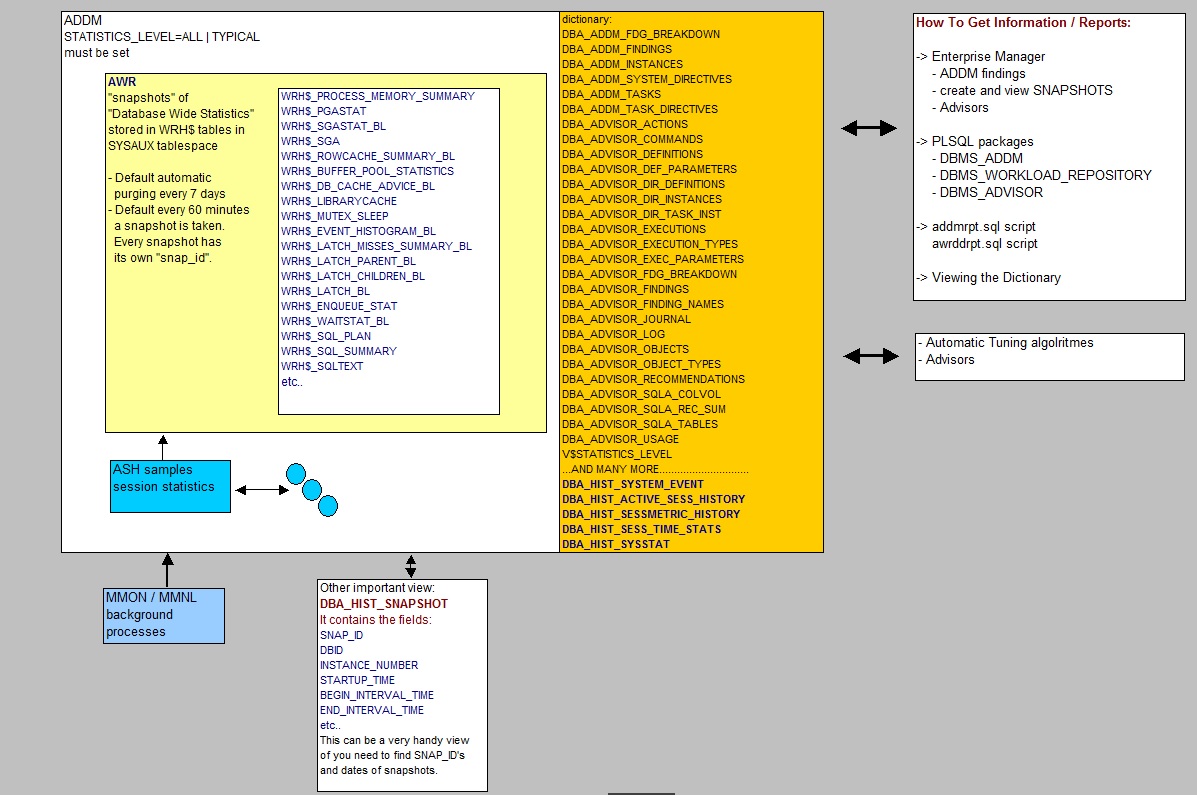

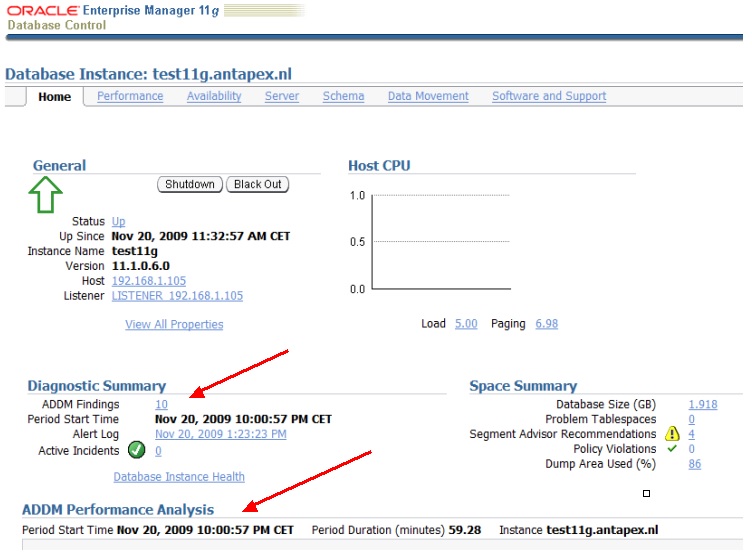

29. A FEW NOTES ON 10g/11g ADDM and AWR
30. A FEW connect STRING EXAMPLES
31. UNSTRUCTURED PLSQL txt FILE
32. HOW TO SOLVE BLOCK CORRUPTION
33. BIRDS-EYE VIEW ON INSTANCE STRUCTURE AND PROCESSES.

34. Appendices.

Part 2:

Main Contents Part 2: 12c (and some also applies to 10g/11g)

35. EM CLOUD CONTROL 12c or EM EXPRESS 12c.

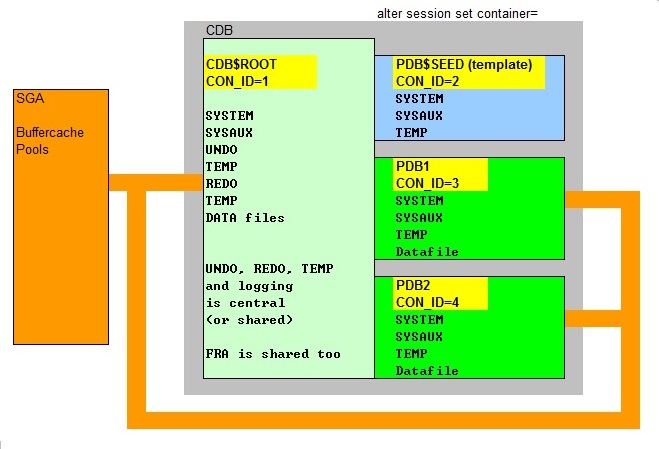

36. CDB AND PDB's IN 12c.
37. CLONING A DATABASE IN 12c.
38. FULL DATABASE CACHING IN 12c.
39. CREATE DATABASE USER IN 12c.
40. ASM IN 10g/11g AND 12c.
41. RMAN IN 12c (SEE ALSO SECTION 26 FOR 10g/11g).
42. ADR, LOGFILES, DIAGNOSTICS (11g/12c).
43. MOVING DATABASE FILES.
44. DATAGUARD 11g/12c.
45. SHOW OFTEN ACCESSED TABLES AND INDEXES (10g/11g/12c).
46. SHOW PERMISSIONS AND GRANT STATEMENTS (10g/11g/12c).
47. EXPDP AND IMPDP (10g/11g/12c).



1. ENABLE AND DISABLE A CONSTRAINT:


-- Disable and enable one Constraint:

ALTER TABLE table_name enable CONSTRAINT constraint_name;

ALTER TABLE table_name disable CONSTRAINT constraint_name;

-- Make a list of statements: Disable and enable ALL Foreign Key (type=R) constraints in one schema (like e.g. HARRY):

SELECT 'ALTER TABLE HARRY.'||table_name||' enable constraint '||constraint_name||';'
FROM DBA_CONSTRAINTS
WHERE owner='HARRY' AND constraint_type='R';

SELECT 'ALTER TABLE HARRY.'||table_name||' disable constraint '||constraint_name||';'
FROM DBA_CONSTRAINTS
WHERE owner='HARRY' AND constraint_type='R';

More on "dynamic" statements:

The statements you see above, generate listings of actual statements.
This will help you if you must alter a large list of objects, or if you must grant or revoke permissions etc.. etc..

Here are a few other examples:

-- create synonyms:

select 'create or replace public synonym '||table_name||'for HR.'||table_name||';'
from dba_tables where owner='HR';

-- INDEX rebuild:

SELECT 'alter index ALBERT.'||INDEX_NAME||' rebuild;'
from dba_indexes where owner='ALBERT';

-- Granting permissions to a role or user for a set of objects:

SELECT 'GRANT SELECT ON HR.'||table_name||' TO ROLE_READONLY;' from dba_tables
where owner='HR';

SELECT 'GRANT SELECT ON HR.'||view_name||' TO ROLE_READONLY;' from dba_views
where owner='HR';

SELECT 'GRANT SELECT, INSERT, UPDATE, DELETE ON NiceApp.'||table_name||' TO Albert;' from dba_tables
where owner='NiceApp';



2. DISABLE AND ENABLE TRIGGER:


-- Disable and enable one trigger:

ALTER TRIGGER trigger_name DISABLE;
ALTER TRIGGER trigger_name ENABLE;

-- Or in 1 time for all triggers on a table:

ALTER TABLE table_name DISABLE ALL TRIGGERS;

ALTER TABLE table_name ENABLE ALL TRIGGERS;

-- Drop a trigger:

DROP TRIGGER trigger_name;




3. PROCESSES AND LOCKS:


3.1 QUICK CHECK ON PROCESSES:

set linesize=1000
set pagesize=1000

-- v$session mainly shows characteristics of Oracle Sessions, v$process is more oriented
-- to OS processes.
-- The below two (similar) queries "connects" the Oracle Session ID (sid) to the OS process (spid):

SELECT
p.spid AS OS_PID,
p.pid,
s.sid AS ORACLE_SID,
p.addr,s.paddr,
substr(s.username, 1, 15) AS DBUSER,
substr(s.schemaname, 1, 15),
s.command,
substr(s.osuser, 1, 15) AS OSUSER,
substr(s.machine, 1, 15) AS MACHINE,
substr(s.program,1,15) AS PROGRAM
FROM v$session s, v$process p
WHERE s.paddr=p.addr

SELECT
p.spid AS OS_PID,
s.sid AS ORACLE_SID,
substr(s.osuser, 1, 15) AS OSUSER,
substr(s.program,1,55) AS PROGRAM,
substr(s.module,1,55) AS MODULE
FROM v$session s, v$process p
WHERE s.paddr=p.addr;

-- Short version:
select p.spid, s.sid, s.osuser, s.program from
v$process p, v$session s where p.addr=s.paddr;

-- Listing characteristics of Oracle Sessions (v$session):

SELECT sid, serial#, substr(username,1,15), substr(osuser,1,15), LOCKWAIT, substr(program,1,30), substr(module,1,30)
FROM v$session;

SELECT
sid, serial#, command,substr(username, 1, 15), substr(osuser,1,15), sql_address,LOCKWAIT,
to_char(logon_time, 'DD-MM-YYYY;HH24:MI'), substr(program, 1, 30)
FROM v$session;

-- background processes:
SQL> SELECT paddr, name, substr(description,1,40) FROM v$bgprocess;

SQL> SELECT pid, spid, program, background FROM v$process WHERE BACKGROUND=1;

3.2 QUICK CHECK ON LOCKS:


SELECT d.OBJECT_ID, substr(OBJECT_NAME,1,20), l.SESSION_ID, l.ORACLE_USERNAME, l.LOCKED_MODE
FROM v$locked_object l, dba_objects d
WHERE d.OBJECT_ID=l.OBJECT_ID;

SELECT * FROM DBA_WAITERS;

SELECT waiting_session, holding_session, lock_type, mode_held
FROM dba_waiters;

3.3 QUICK CHECK ON TEMP:

select total_extents, used_extents, total_extents, current_users, tablespace_name
from v$sort_segment;

select username, user, sqladdr, extents, tablespace from v$sort_usage;

3.4 QUICK CHECK ON ACTIVITY UNDO:

SELECT a.sid, a.saddr, b.ses_addr, a.username, b.xidusn, b.used_urec, b.used_ublk
FROM v$session a, v$transaction b
WHERE a.saddr = b.ses_addr;

3.5 QUICK CHECK ON CPU USAGE

select ss.username, se.SID, se.SERIAL#, VALUE/100 cpu_usage_seconds
from v$session ss, v$sesstat se, v$statname sn
where
se.STATISTIC# = sn.STATISTIC#
and
NAME like '%CPU used by this session%'
and
se.SID = ss.SID
and
ss.status='ACTIVE'
and
ss.username is not null
order by VALUE desc;

select v.sql_text, v.FIRST_LOAD_TIME, v.PARSING_SCHEMA_ID, v.DISK_READS, v.ROWS_PROCESSED, v.CPU_TIME,
b.username from
v$sqlarea v, dba_users b
where v.FIRST_LOAD_TIME > '2017-06-26'
and v.PARSING_SCHEMA_ID=b.user_id
order by v.CPU_TIME desc ;




4. QUICK CHECK DATABASE NAME AND INSTANCE NAME:


set linesize=1000
set pagesize=1000

SELECT * FROM v$database;

SELECT DBID, NAME, CREATED, LOG_MODE, OPEN_MODE FROM v$database;

SELECT * FROM v$instance;

SELECT INSTANCE_NAME, HOST_NAME,VERSION, STARTUP_TIME, STATUS FROM v$instance;




5. QUICK CHECKS ON DATABASE FILES:


5.1 CONTROLFILES:

select * from v$controlfile;

5.2 REDO LOG FILES:

select * from v$log;

select * from v$logfile;

5.3 DATA FILES:

SELECT file_id, substr(file_name, 1, 70), substr(tablespace_name,1,50), status FROM dba_data_files;

SELECT file_id, substr(file_name, 1, 70), bytes, blocks, autoextensible FROM dba_data_files;

SELECT file#, status, substr(name, 1, 70) FROM V$DATAFILE;

5.4 FREE/USED SPACE IN TABLESPACES:

SELECT Total.name "Tablespace Name",
Free_space, (total_space-Free_space) Used_space, total_space
FROM
(SELECT tablespace_name, sum(bytes/1024/1024) Free_Space
FROM sys.dba_free_space
GROUP BY tablespace_name
) Free,
(SELECT b.name, sum(bytes/1024/1024) TOTAL_SPACE
FROM sys.v_$datafile a, sys.v_$tablespace B
WHERE a.ts# = b.ts#
GROUP BY b.name
) Total
WHERE Free.Tablespace_name = Total.name;




6. QUICK CHECK ON BACKUP/RECOVERY RELATED EVENTS:


SELECT * FROM v$backup;

SELECT file#, status, substr(name, 1, 70), checkpoint_change# FROM v$datafile;

SELECT file#, status, checkpoint_change# FROM v$datafile_header;

SELECT substr(name,1,60), recover, fuzzy, checkpoint_change#, resetlogs_change#, resetlogs_time
FROM v$datafile_header;

SELECT name, open_mode, checkpoint_change#, ARCHIVE_CHANGE# FROM v$database;

SELECT GROUP#,THREAD#,SEQUENCE#,MEMBERS,ARCHIVED,STATUS,FIRST_CHANGE# FROM v$log;

SELECT GROUP#,substr(member,1,70) FROM v$logfile;

SELECT * FROM v$log_history;
SELECT * FROM v$recover_file;
SELECT * FROM v$recovery_log;

SELECT first_change#, next_change#, sequence#, archived, substr(name, 1, 50)
FROM V$ARCHIVED_LOG;

SELECT status,resetlogs_change#,resetlogs_time,checkpoint_change#,
to_char(checkpoint_time, 'DD-MON-YYYY HH24:MI:SS') as checkpoint_time,count(*)
FROM v$datafile_header
group by status, resetlogs_change#, resetlogs_time, checkpoint_change#, checkpoint_time
order by status, checkpoint_change#, checkpoint_time ;

SELECT LF.member, L.group#, L.thread#, L.sequence#, L.status,
L.first_change#, L.first_time, DF.min_checkpoint_change#
FROM v$log L, v$logfile LF,
(select min(checkpoint_change#) min_checkpoint_change#
from v$datafile_header
where status='ONLINE') DF
WHERE LF.group# = L.group#
AND L.first_change# >= DF.min_checkpoint_change#;

SELECT * FROM V$RECOVERY_FILE_DEST;

SELECT * FROM V$FLASH_RECOVERY_AREA_USAGE;

SELECT V1.GROUP#, MEMBER, SEQUENCE#, FIRST_CHANGE#
FROM V$LOG V1, V$LOGFILE V2
WHERE V1.GROUP# = V2.GROUP# ;

SELECT FILE#, CHANGE# FROM V$RECOVER_FILE;

select al.sequence#
from v$archived_log al, v$log rl
where al.sequence# = rl.sequence# (+)
and al.thread# = rl.thread# (+)
and ( rl.status = 'INACTIVE'
or rl.status is null
)
and al.deleted = 'NO'
order by al.sequence#

SELECT RECOVERY_ESTIMATED_IOS FROM V$INSTANCE_RECOVERY;




7. EXAMPLES OF SOME COMMON CREATE STATEMENTS :

7.1 CREATE TABLESPACE:

CREATE TABLESPACE STAGING DATAFILE 'C:\ORADATA\TEST11G\STAGING.DBF' SIZE 5000M
EXTENT MANAGEMENT LOCAL AUTOALLOCATE
SEGMENT SPACE MANAGEMENT AUTO;

CREATE TABLESPACE CISTS_01 DATAFILE '/u07/oradata/spldevp/cists_01.dbf' SIZE 1200M
EXTENT MANAGEMENT LOCAL UNIFORM SIZE 128K;

7.2 CREATE TABLE (heap organized):

CREATE TABLE employees
(
employee_id NUMBER(6),
first_name VARCHAR2(20),
last_name VARCHAR2(25) NOT NULL,
email VARCHAR2(25) NOT NULL,
phone_number VARCHAR2(20),
hire_date DATE CONSTRAINT emp_hire_date_nn NOT NULL,
job_id VARCHAR2(10) CONSTRAINT emp_job_nn NOT NULL,
salary NUMBER(8,2),
commission_pct NUMBER(2,2),
manager_id NUMBER(6),
department_id NUMBER(4),
CONSTRAINT emp_salary_min CHECK (salary > 0), CONSTRAINT emp_email_uk UNIQUE (email)
) TABLESPACE USERS;

ALTER TABLE employees
ADD (
CONSTRAINT emp_emp_id_pk PRIMARY KEY (employee_id),
CONSTRAINT emp_dept_fk FOREIGN KEY (department_id) REFERENCES departments (department_id),
CONSTRAINT emp_job_fk FOREIGN KEY (job_id) REFERENCES jobs (job_id),
CONSTRAINT emp_manager_fk FOREIGN KEY (manager_id) REFERENCES employees (manager_id)
) ;

CREATE TABLE hr.admin_emp (
empno NUMBER(5) PRIMARY KEY,
ename VARCHAR2(15) NOT NULL,
ssn NUMBER(9) ENCRYPT,
job VARCHAR2(10),
mgr NUMBER(5),
hiredate DATE DEFAULT (sysdate),
photo BLOB,
sal NUMBER(7,2),
hrly_rate NUMBER(7,2) GENERATED ALWAYS AS (sal/2080),
comm NUMBER(7,2),
deptno NUMBER(3) NOT NULL,
CONSTRAINT admin_dept_fkey REFERENCES hr.departments
(department_id)) TABLESPACE admin_tbs
STORAGE ( INITIAL 50K);

7.3 OBJECT TABLE:

CREATE TYPE department_typ AS OBJECT
( d_name VARCHAR2(100),
d_address VARCHAR2(200) );

CREATE TABLE departments_obj_t OF department_typ;
INSERT INTO departments_obj_t
VALUES ('hr', '10 Main St, Sometown, CA');

7.4 GLOBAL TEMPORARY TABLE:

CREATE GLOBAL TEMPORARY TABLE my_temp_table (
column1 NUMBER,
column2 NUMBER
) ON COMMIT DELETE ROWS;

CREATE GLOBAL TEMPORARY TABLE my_temp_table (
column1 NUMBER,

column2 NUMBER ) ON COMMIT PRESERVE ROWS;

7.5 EXTERNAL TABLE:

CREATE OR REPLACE DIRECTORY ext AS 'c:\external';
GRANT READ ON DIRECTORY ext TO public;

CREATE TABLE ext_tab (
empno CHAR(4),
ename CHAR(20),
job CHAR(20),
deptno CHAR(2))
ORGANIZATION EXTERNAL (
TYPE oracle_loader
DEFAULT DIRECTORY ext
ACCESS PARAMETERS (
RECORDS DELIMITED BY NEWLINE
BADFILE 'bad_%a_%p.bad'
LOGFILE 'log_%a_%p.log'
FIELDS TERMINATED BY ','
MISSING FIELD VALUES ARE NULL
REJECT ROWS WITH ALL NULL FIELDS
(empno, ename, job, deptno))
LOCATION ('demo1.dat')
)

7.6 CREATE CLUSTER:

Index Cluster:
CREATE CLUSTER employees_departments_cluster
(department_id NUMBER(4))
SIZE 512;

CREATE INDEX idx_emp_dept_cluster ON CLUSTER employees_departments_cluster;

-- Now, "add" tables to the cluster like for example:

CREATE TABLE employees ( ... )
CLUSTER employees_departments_cluster (department_id);

CREATE TABLE departments ( ... )
CLUSTER employees_departments_cluster (department_id);

7.7 INDEX-ORGANIZED TABLE:

-- Index Organized Tables are tables that, unlike heap tables, are organized like B*Tree indexes.
CREATE TABLE labor_hour (
WORK_DATE DATE,
EMPLOYEE_NO VARCHAR2(8),
CONSTRAINT pk_labor_hour
PRIMARY KEY (work_date, employee_no))
ORGANIZATION INDEX;

7.8 DATABASE LINK:

-- To run queries against remote tables in another database, you can create a "database link":
-- Example:

CREATE Public Database Link MYLINK
connect To scott Identified By tiger using sales;

Here, "sales" is the alias as listed in the tnsnames.ora, which corresponds to some local
or remote instance.
Also, scott is a schema in that remote database, which owns the tables and views we are interrested in.

Now suppose that EMP (scott.EMP) is a table in the remote database, then we can query it using
a syntax like:

SELECT * from EMP@MYLINK;

So, the SELECT statement simply uses identifiers like "OBJECT_NAME@DATABASELINK_NAME"
in the FROM clause.

Note: you can also create a "synonym" for such remote tables, which make them
to "appear" to exist locally.

7.9 SEQUENCE:

CREATE SEQUENCE sequence name
INCREMENT BY increment number
START WITH start number
MAXVALUE maximum value
CYCLE ;

CREATE SEQUENCE SEQ_SOURCE
INCREMENT BY 1
START WITH 1
MAXVALUE 9999999
NOCYCLE;

create table SOURCE
(
id number(10) not null,
longrecord varchar2(128));

CREATE OR REPLACE TRIGGER tr_source
BEFORE INSERT ON SOURCE FOR EACH ROW
BEGIN
SELECT seq_source.NEXTVAL INTO :NEW.id FROM dual;
END;
/

7.10 Partitioned Table:

-- RANGE PARTITIONED:

CREATE TABLE sales
( invoice_no NUMBER,
sale_year INT NOT NULL,
sale_month INT NOT NULL,
sale_day INT NOT NULL )
PARTITION BY RANGE (sale_year, sale_month, sale_day)
( PARTITION sales_q1 VALUES LESS THAN (1999, 04, 01)
TABLESPACE tsa,
PARTITION sales_q2 VALUES LESS THAN (1999, 07, 01)
TABLESPACE tsb,
PARTITION sales_q3 VALUES LESS THAN (1999, 10, 01)
TABLESPACE tsc,
PARTITION sales_q4 VALUES LESS THAN (2000, 01, 01)
TABLESPACE tsd );

-- A row with SALE_YEAR=1999, SALE_MONTH=8, and SALE_DAY=1 has a partitioning key of (1999, 8, 1)
-- and would be stored in partition SALES_Q3 in Tablespace tsc.

-- HASH PARTITIONED:

CREATE TABLE scubagear
(id NUMBER,
name VARCHAR2 (60))
PARTITION BY HASH (id)
PARTITIONS 4
STORE IN (gear1, gear2, gear3, gear4);

-- LIST PARTITIONED:

CREATE TABLE q1_sales_by_region
(deptno number,
deptname varchar2(20),
quarterly_sales number(10, 2),
state varchar2(2))
PARTITION BY LIST (state)
(PARTITION q1_northwest VALUES ('OR', 'WA'),
PARTITION q1_southwest VALUES ('AZ', 'UT', 'NM'),
PARTITION q1_northeast VALUES ('NY', 'VM', 'NJ'),
PARTITION q1_southeast VALUES ('FL', 'GA'),
PARTITION q1_northcentral VALUES ('SD', 'WI'),
PARTITION q1_southcentral VALUES ('OK', 'TX'));

-- Composite Range-Hash Partitioning:

CREATE TABLE scubagear (equipno NUMBER, equipname VARCHAR(32), price NUMBER)
PARTITION BY RANGE (equipno) SUBPARTITION BY HASH(equipname)
SUBPARTITIONS 8 STORE IN (ts1, ts2, ts3, ts4) -- tablespaces (PARTITION p1 VALUES LESS THAN (1000),
PARTITION p2 VALUES LESS THAN (2000),
PARTITION p3 VALUES LESS THAN (MAXVALUE));




8. GET THE SQL ISSUED AGAINST THE DATABASE:

-- Could take a lot of performance, depending on uptime and activity.
-- Sort of auditing. You get the sql statements.
-- Important: First try this query on a test system.

-- set linesize 70
-- set pagesize 100
-- set trimspool on
-- spool /tmp/sql.log

select v.sql_text, v.FIRST_LOAD_TIME, v.PARSING_SCHEMA_ID, v.DISK_READS, v.ROWS_PROCESSED, v.CPU_TIME,
b.username from
v$sqlarea v, dba_users b
where v.FIRST_LOAD_TIME > '2010-03-15'
and v.PARSING_SCHEMA_ID=b.user_id
order by v.FIRST_LOAD_TIME ;




9. GET THE SGA PROPERTIES:

-- Oracle background processes:

SQL> SELECT paddr, name, substr(description,1,40) FROM v$bgprocess;

SQL> SELECT pid, spid, program, background FROM v$process WHERE BACKGROUND=1;

-- All processes:

SQL> SELECT SID,SERIAL#,USERNAME,COMMAND,PROCESS,MODULE,PROGRAM FROM v$session;

-- SGA properties:

SELECT * FROM v$sga;

SELECT * FROM v$sgastat;

SELECT * FROM v$pgastat; -- PGA properties

SELECT * FROM v$memory_target_advice ORDER BY memory_size;

SELECT SUBSTR(COMPONENT,1,20), CURRENT_SIZE, MIN_SIZE, MAX_SIZE, USER_SPECIFIED_SIZE from V$MEMORY_DYNAMIC_COMPONENTS;

SELECT sum(bytes) FROM v$sgastat WHERE pool in ('shared pool', 'java pool', 'large pool');

SELECT (1-(pr.value/(dbg.value+cg.value)))*100
FROM v$sysstat pr, v$sysstat dbg, v$sysstat cg
WHERE pr.name = 'physical reads'
AND dbg.name = 'db block gets'
AND cg.name = 'consistent gets';

SELECT * FROM v$sgastat
WHERE name = 'free memory';

SELECT gethits,gets,gethitratio FROM v$librarycache
WHERE namespace = 'SQL AREA';

SELECT substr(sql_text,1,40) "SQL",
count(*) ,
sum(executions) "TotExecs"
FROM v$sqlarea
WHERE executions < 5
GROUP BY substr(sql_text,1,40)
HAVING count(*) > 30
ORDER BY 2;

SELECT SUM(PINS) "EXECUTIONS", SUM(RELOADS) "CACHE MISSES WHILE EXECUTING"
FROM V$LIBRARYCACHE;

See also section 33 for an illustration of the memory structures and processes.



10. CREATE AN "SPFILE.ORA" FROM AN "INIT.ORA" AND THE OTHER WAY AROUND:

-- init.ora: traditional ascii format startup configuration file.
-- spfile.ora: binary format startup configuration file.
-- Both can be used to start the instance. However, preferred is to use the spfile.ora.
-- The actual (default) init.ora/spfile.ora file, will use the instance name in it's filename, like initSALES.ora

CREATE SPFILE='/opt/oracle/product/10.2/dbs/spfileSALES.ora'
FROM PFILE='/opt/oracle/product/10.2/admin/scripts/init.ora';

CREATE SPFILE='/opt/app/oracle/product/9.2/dbs/spfilePEGACC.ora'
FROM PFILE='/opt/app/oracle/admin/PEGACC/scripts/init.ora';

CREATE PFILE='/opt/oracle/product/10.2/admin/scripts/init.ora'
FROM SPFILE='/opt/oracle/product/10.2/dbs/spfileSALES.ora';

In addition, in Oracle 11g, you can create a pfile (init.ora) file, just from the current settings from memory:

CREATE PFILE='/apps/oracle/product/11.1/dbs/init_prod.ora' FROM MEMORY;




11. CREATE A COPY TABLE WITH ALL DATA:

-- The CTAS method or "CREATE TABLE AS SELECT" method, allows you to create an exact copy table
-- from an original table, with the same columns and datatypes, and all rows,
-- but excluding the indexes and constraints.
-- This new table will be created "on the fly", so it should not exist beforehand.
-- Example CTAS method:

CREATE TABLE EMPLOYEE2
AS SELECT * FROM EMPLOYEE;

-- One alternative method is:
-- Obtain the create script of the original table (e.g. using toad).
-- Create the new empty table using an other tablename, using that script. -- Then use:

INSERT INTO NEW_TABLE SELECT * FROM SOURCE_TABLE;



12. A FEW SIMPLE WAYS TO TRACE A SESSION:

-- This section ONLY lists the very very basics on tracing.

-- "Old fashion" traces in 9i/10g/11g, uses the Session Identifier (SID) and optionally other parameters like
-- the Serial number (serial#), to distinguish between all sessions in the database, and accordingly trace
-- that specific session.

-- Modern methods allows you to establish a client identifier, or let's you monitor on a module,
-- so you are not perse "tied" to the SID anymore.

-- From v$session you can find the username, osuser, SID, SERIAL#, program, and module (if needed).
-- Like for example (see section 3 for more info):
--
-- select sid, serial#, username from v$session;
-- select sid, serial#, username, module from v$session;
--
-- This will identify the Oracle SID with the username (and optionally the OS user and other).
-- If you know a characteristic program, or module (like sqlplus), or user, the SID (Session ID) can be found.
-- Especially the "module" field in v$session identifies a certain client program like "sqlplus.exe" or "nav.exe" etc..
-- But maybe, already a unique username is sufficient to identify the SID and SERIAL# in your situation.

-- In most methods, the 9i, 10g traces will be stored in the USER_DUMP_DEST directory (udump).



12.1 TRACING ON SESSION ID (SID)


1. Using the DBMS_MONITOR.SESSION_TRACE_ENABLE() procedure:

Example: Suppose you want to trace Session 75 with serial# 4421:

exec DBMS_MONITOR.SESSION_TRACE_ENABLE(75,4421);

To disable tracing specified in the previous step:

exec DBMS_MONITOR.SESSION_TRACE_DISABLE(75,4421);

Since almost always the session is qualified "enough" by the SID alone, you can use this as well:

exec DBMS_MONITOR.SESSION_TRACE_ENABLE(75);

Tracing your session can be done using:
exec DBMS_MONITOR.SESSION_TRACE_ENABLE();
or
exec DBMS_MONITOR.SESSION_TRACE_ENABLE(NULL, NULL);


2. Using the DBMS_SYSTEM.SET_EV() procedure:

Here, You need to know which "event" number you want to trace on, and the level thereoff.
For a performance related trace, event 10046 with level 8 (or 12) might be a good choice.
Be aware that these traces produce quick growing trace files (especially level 12).
Next, you need the SID and SERIAL# of the session you want to trace.
The trace information will be written to user_dump_dest.

Example:

Start the trace on Session 177 (with serial# 55235):

exec sys.dbms_system.set_ev(177,55235,10046,8,'');

Stop the trace on Session 177 (with serial# 55235):

exec sys.dbms_system.set_ev(177,55235,10046,0,'');


3. Using the DBMS_System.Set_Sql_Trace_In_Session() procedure:

A "quite old" and well known other procedure that can be used to trace a Session, is the
DBMS_System.Set_Sql_Trace_In_Session(SID, SERIAL#,true|false) procedure.

Example:

Turn SQL tracing on in session 448. The trace information will get written to user_dump_dest.

exec dbms_system.set_sql_trace_in_session(448,2288,TRUE);

Turn SQL tracing off in session 448

exec dbms_system.set_sql_trace_in_session(448,2288,FALSE);


12.2 TRACING ON OTHER IDENTIFIERS:

Instead of tracing on a known SID, to be able to trace on other "identifiers" is a much wanted feature.
As of 10g, the tracing facility has been greatly expanded.
New v$ "views" were added, and existing v$ "views" has been expanded to facilitate the new tracing methods.

This sub section will hold for 10g/11g.

Again let's take a look at DBMS_MONITOR again.
Suppose we want to track a program that connects to a RAC cluster. Now, the discussion is not much different
in using a standallone instance. Only, you probably know that the v$ views are specific for an instance,
while the gv$ views are "global" for all the instances in RAC.

The DBMS_MONITOR.serv_mod_act_trace_enable() method allows you to set the tracing on for sessions matching a
module, action, or other usable field in gv$session (or v$session).
So, suppose we want to generate traces for all SQL*plus sessions that connect to the cluster (RACDEV1) from any instance,
we could issue the following command:

BEGIN
DBMS_MONITOR.serv_mod_act_trace_enable
(service_name => 'RACDEV1',
module_name => 'SQL*Plus',
action_name => DBMS_MONITOR.all_actions,
waits => TRUE,
binds => FALSE,
instance_name => NULL
);
END;
/




13. A FEW SIMPLE WAYS TO DETECT WAITS:

-- This section ONLY lists the very very basics on waits.

-- set linesize 1000
-- set pagesize 1000
-- see for yourself where to use substr(field,start,lenght)

13.1 HOW TO IDENTIFY THE FILES WITH HIGHEST ACTIVITY:

-- query on v$filestat, dba_data_files:

SELECT v.PHYRDS, v.PHYWRTS, d.TABLESPACE_NAME, d.FILE_NAME
FROM V$FILESTAT v, DBA_DATA_FILES d
WHERE v.FILE#=d.FILE_ID;

13.2 HOW TO IDENTIFY ACTIVITY ON CONTROLFILES:

SELECT * FROM v$system_event
WHERE event LIKE '%control%' ;

13.3 HOW TO IDENTIFY WAITS OF SESSIONS OR WITH HIGH IO:

SELECT s.SID,v.username,v.osuser,v.command,s.BLOCK_GETS,s.PHYSICAL_READS,s.BLOCK_CHANGES,substr(v.module,1,30)
FROM v$sess_io s, v$session v
where v.sid=s.sid;

SELECT SID,OPNAME,SOFAR,TOTALWORK,START_TIME,LAST_UPDATE_TIME,TIME_REMAINING,MESSAGE
FROM v$session_longops;

-- identify SID's and the objects (or file#, block#) which are involved in waits.

SELECT SID, event,p1text,p1,p2text,p2
FROM v$session_wait
WHERE event LIKE 'db file%'
AND state = 'WAITING';

-- The p1 and p2 might identify the file# and block# of the object(s).
-- Determine the object as follows: suppose you found p1=5 and p2=1178

select segment_name, segment_type
from dba_extents
where file_id = 5 and 1178 between (block_id and block_id + blocks – 1);

13.4 OVERALL WAITS:

select
event,
total_waits,
time_waited / 100,
total_timeouts,
average_wait/100
from
v$system_event
where -- list of not too interresting events
event not in (
'dispatcher timer',
'lock element cleanup',
'Null event',
'parallel query dequeue wait',
'parallel query idle wait - Slaves',
'pipe get',
'PL/SQL lock timer',
'pmon timer',
'rdbms ipc message',
'slave wait',
'smon timer',
'SQL*Net break/reset to client',
'SQL*Net message from client',
'SQL*Net message to client',
'SQL*Net more data to client',
'virtual circuit status',
'WMON goes to sleep'
);

SELECT event, total_waits, total_timeouts, time_waited, average_wait
FROM v$system_event order by time_waited;

SELECT NAME, VALUE from v$sysstat
where name like '%db%' or name like '%block%'
or name like '%log%' or name like '%cons%'
or name like '%undo%' or name like '%write%' or name like '%read%';

13.5 MORE ON V$SESSION_LONGOPS:

Long running statements are also registered in v$session_longops.
Especially cute, are fields like "sofar"(work already done), "totalwork", and ofcourse
identifiers of the session and user.

Here are some well-known examples which almost everybody uses once in a while:

Example 1:

select * from
(
select
opname,
start_time,
target,
sofar,
totalwork,
units,
elapsed_seconds,
message
from
v$session_longops
order by start_time desc
)
where rownum <=1;

Example 2:

select
round(sofar/totalwork*100,2) percent_completed,
v$session_longops.*
from
v$session_longops
where
sofar <> totalwork
order by
target, sid;

Example 3:

Select 'long', to_char (l.sid), to_char (l.serial#), to_char(l.sofar), to_char(l.totalwork), to_char(l.start_time, 'DD-Mon-YYYY HH24:MI:SS' ),
to_char ( l.last_update_time , 'DD-Mon-YYYY HH24:MI:SS'), to_char(l.time_remaining), to_char(l.elapsed_seconds),
l.opname,l.target,l.target_desc,l.message,s.username,s.osuser,s.lockwait from v$session_longops l, v$session s
where l.sid = s.sid and l.serial# = s.serial#;

Select 'long', to_char (l.sid), to_char (l.serial#), to_char(l.sofar), to_char(l.totalwork), to_char(l.start_time, 'DD-Mon-YYYY HH24:MI:SS' ),
to_char ( l.last_update_time , 'DD-Mon-YYYY HH24:MI:SS'), s.username,s.osuser,s.lockwait from v$session_longops l, v$session s
where l.sid = s.sid and l.serial# = s.serial#;




14. CREATE A DATABASE USER:

-- EXAMPLE STANDARD DATABASE USER:

CREATE USER albert identified by albert
DEFAULT TABLESPACE SALESDATA -- salesdata is a tablespace
TEMPORARY TABLESPACE TEMP
QUOTA 100M ON SALESDATA
QUOTA 20M ON USERS
;

-- GRANT standard roles:

GRANT connect TO albert;
GRANT resource TO albert;

-- GRANT specific privileges:

GRANT create trigger TO albert;
GRANT create sequence TO albert;
GRANT create procedure TO albert;

-- DROP the user:

DROP USER albert cascade;

-- EXAMPLE (external) USER:

CREATE USER global_user
IDENTIFIED GLOBALLY AS 'CN=jjones, OU=sales, O=antapex, C=NL'
DEFAULT TABLESPACE users
QUOTA 500M ON users;

-- EXAMPLE (Windows AD authenticed user) USER:

Suppose we have the account Harry01 from the XYZ domain. For access to Oracle, we can create
the following registration, which does not need to logon to Oracle.

CREATE USER "OPS$XYZ\Harry01"
IDENTIFIED EXTERNALLY
DEFAULT TABLESPACE SALES_DATA
TEMPORARY TABLESPACE TEMP
PROFILE DEFAULT
ACCOUNT UNLOCK
QUOTA 100M ON SALES_DATA

GRANT CONNECT TO "OPS$XYZ\Harry01";
GRANT READ_SALES TO "OPS$XYZ\Harry01";
GRANT RESOURCE TO "OPS$XYZ\Harry01";
GRANT SELECT_CATALOG_ROLE TO "OPS$XYZ\Harry01";
GRANT ADMINISTER DATABASE TRIGGER TO "OPS$XYZ\Harry01";
GRANT ALTER USER TO "OPS$XYZ\Harry01";
GRANT CREATE INDEXTYPE TO "OPS$XYZ\Harry01";
GRANT CREATE LIBRARY TO "OPS$XYZ\Harry01";
GRANT CREATE OPERATOR TO "OPS$XYZ\Harry01";
GRANT CREATE PROCEDURE TO "OPS$XYZ\Harry01";
GRANT CREATE PUBLIC SYNONYM TO "OPS$XYZ\Harry01";
GRANT CREATE SEQUENCE TO "OPS$XYZ\Harry01";
GRANT CREATE SESSION TO "OPS$XYZ\Harry01";
GRANT CREATE TABLE TO "OPS$XYZ\Harry01";
GRANT CREATE TRIGGER TO "OPS$XYZ\Harry01";
GRANT CREATE TYPE TO "OPS$XYZ\Harry01";
GRANT CREATE VIEW TO "OPS$XYZ\Harry01";
GRANT DROP PUBLIC SYNONYM TO "OPS$XYZ\Harry01";
GRANT UNLIMITED TABLESPACE TO "OPS$XYZ\Harry01";




15. FINDING INVALID OBJECTS AND REPAIR:

-- Finding invalid objects:

SELECT owner, substr(object_name, 1, 30), object_type, created,
last_ddl_time, status
FROM dba_objects
WHERE status='INVALID';

-- Recompile packages:

SELECT 'ALTER '||decode( object_type,
'PACKAGE SPECIFICATION'
,'PACKAGE'
,'PACKAGE BODY'
,'PACKAGE'
,object_type)
||' '||owner
||'.'|| object_name ||' COMPILE '
||decode( object_type,
'PACKAGE SPECIFICATION'
,'SPECIFACTION'
,'PACKAGE BODY'
,'BODY'
, NULL) ||';'
FROM dba_objects WHERE status = 'INVALID';

-- Using DBMS_UTILITY.compile_schema to compile all objects in a schema:

Example:

exec DBMS_UTILITY.compile_schema('HARRY');

-- Manually recompile objects like views, triggers etc..:

ALTER PACKAGE my_package COMPILE;
ALTER PACKAGE my_package COMPILE BODY;
ALTER PROCEDURE my_procedure COMPILE;
ALTER FUNCTION my_function COMPILE;
ALTER TRIGGER my_trigger COMPILE;
ALTER VIEW my_view COMPILE;




16. CREATING AND REBUILDING INDEXES:

16.1 EXAMPLES ON HOW TO CREATE INDEXES:

-- Examples of ordinary index:

CREATE INDEX indx_cust_id ON CUSTOMERS(cust_id);
CREATE INDEX indx_cust_id ON CUSTOMERS(cust_id) nologging;
CREATE INDEX indx_cust_id ON CUSTOMERS(cust_id) TABLESPACE SALES_INDEX01;
CREATE INDEX index_employees ON EMPLOYEES(last_name, job_id, salary); -- multiple columns

-- Some special types of indexes:

-- reverse key:
CREATE INDEX indx_r_name ON RESTAURANTS(r_name) REVERSE;

-- bitmap index:
CREATE BITMAP INDEX indx_gender ON EMPLOYEE (gender) TABLESPACE EMPDATA;

-- function based index:
CREATE INDEX emp_total_sal_idx ON employees (12 * salary * commission_pct, salary, commission_pct);

16.2 EXAMPLES ON HOW TO REBUILD INDEXES:

-- Note that rebuilding large, or many, indexes, will generate, or add, to redo logging as well.
-- Therefore, in some cases the NOLOGGING keyword maybe of help.
-- Also, in case of very large, or a very large number of big indexes, rebuilding will be a major task.
-- This note is not about the best practises on when to rebuild indexes.

Examples:

alter index HARRY.EMPNO_INDEX rebuild;
alter index HARRY.EMPNO_INDEX rebuild nologging;
alter index HARRY.EMPNO_INDEX rebuild tablespace SALES_INDEX_02; -- rebuild to another tablespace

-- Create a list of rebuild index statements:

SELECT 'ALTER INDEX HARRY.'||index_name||' REBUILD;' from dba_indexes
where owner='HARRY';




17. GETTING PRODUCT/PARAMETER INFORMATION:

17.1 OPTIONS, VERSION, FEATURES:

SELECT * FROM V$VERSION;
SELECT * FROM V$OPTION;
SELECT * FROM V$LICENSE;
SELECT * FROM PRODUCT_COMPONENT_VERSION;

17.2 COLLATION:

SELECT * FROM NLS_DATABASE_PARAMETERS;
SELECT * FROM NLS_SESSION_PARAMETERS;
SELECT * FROM NLS_INSTANCE_PARAMETERS;

17.3 PARAMETERS/OPTIONS:

SELECT * FROM DBA_REGISTRY;
SELECT * FROM v$parameter;




18. KILLING AN ORACLE SESSION:

18.1 Single instance:

From v$session, you can obtain the Oracle Session ID (sid) and serial#.
If a Oracle session must be "killed", you can use the following ALTER SYSTEM command:

ALTER SYSTEM KILL SESSION 'sid, serial#';

Example:

ALTER SYSTEM KILL SESSION '77,285';

The above statement does not use brutal force to end the session, if currectly transactions are
associated with that session. So, it might show up as having a status of "marked for kill".

18.2 Cluster:

In a RAC cluster environment, a third parameter parameter should be added, which is the instance ID:

ALTER SYSTEM KILL SESSION 'sid, serial#,@inst_id';

18.3 Additional clauses:

A few additional clauses can be used with the ALTER SYSTEM KILL SESSION statement, like for example:

ALTER SYSTEM KILL SESSION 'sid, serial#' IMMEDIATE;

The above command, will terminate the session and possible ongoing transactions will roll back.

18.4 Killing OS processes:

If you have identified the "process id" of the OS process which is associated to the Oracle session,
you might consider "killing" the process from the OS prompt.

Example on Windows:

C:\> orakill SALES 22389

Example on Unix/Linux:

% kill -9 55827




19. 9i,10g,11g INIT.ORA/SPFILE.ORA parameters:

19.1 ABOUT THE SPFILE/INIT.ORA FILES:

The "spfile.ora" (or "init.ora") instance startup configuration file, determines in a large way,
how the instance will be configured. Think of the size of SGA memory, how many processes are allowed,
location of controlfiles, location of archived redologs etc.. etc..

As of 9i, a (binary) spfile.ora is used. However, it's still possible to start a 9i/10g/11g instance
using a tradional (ascii) init.ora file.

If at a closed instance, you would do this:
SQL> connect / as sysdba
SQL> startup

Then the default spfile.ora would be used.
But, at a closed instance, if you would do this:

SQL> connect / as sysdba
SQL> startup mount pfile=/apps/oracle/product/10.2/admin/test10g/pfile/init.ora
SQL> alter database open;

Then that specific init.ora would be used to start and configure the instance.

Since the spfile.ora is not ascii, it's not easy to view the file directly
. In section 10, we showed how to create an ascii init.ora file from an spfile.
One small advantage from an init.ora, is that it is easy to view it with any editor, or just with shell commands.

Here are a few examples again:

CREATE SPFILE='/opt/oracle/product/10.2/dbs/spfileSALES.ora'
FROM PFILE='/opt/oracle/product/10.2/admin/scripts/init.ora';

CREATE SPFILE='/opt/app/oracle/product/9.2/dbs/spfilePEGACC.ora'
FROM PFILE='/opt/app/oracle/admin/PEGACC/scripts/init.ora';

For viewing settings from the SQL> prompt, you can use the "show parameter" command, like so:

SQL> show parameter spfile

spfile string C:\ORACLE\PRODUCT\10.2\DB_1\DATABASE\SPFILETEST10G.ORA

So, that shows you the location of the spfile itself.

SQL> show parameter sga

NAME TYPE VALUE

lock_sga boolean FALSE
pre_page_sga boolean FALSE
sga_max_size big integer 280M
sga_target big integer 280M

So, the upper command shows you SGA (shared memory) related settings.


19.2 CLUSTER AND INSTANCE SPECIFIC PARAMETERS:

On a simple 10g test database, I created a init.ora file (see section 10), and a small partial section is shown below:

*.db_recovery_file_dest_size=2147483648
*.dispatchers='(PROTOCOL=TCP) (SERVICE=test10gXDB)'
*.job_queue_processes=10
*.open_cursors=300
*.pga_aggregate_target=96468992
*.processes=150
test10g.__db_cache_size=167772160
test10g.__java_pool_size=16777216
test10g.__large_pool_size=4194304

What's typical for 10g/11g, is that for the "*." settings, it means it's in effect for all instances in a cluster.
It;s there even if you just use a stand allone instance.
The records that are like "instance_name.setting", it means that it is in effect for that instance only.

So, If an initialization parameter applies to all instances, use *.parameter notation, otherwise
prefix the parameter with the name of the instance.
For example:
Assume that you start the instance "prod1" (in a cluster) with an SPFILE containing the following entries:

*.OPEN_CURSORS=500
prod1.OPEN_CURSORS=1000

Then OPEN_CURSORS=1000 is in effect only for the instance prod1.


19.3 EXAMPLE 10g/11g INIT.ORA, OR SPFILE.ORA:

-Example 1:

###########################################
# Cache and I/O
###########################################
db_block_size=8192
db_file_multiblock_read_count=16

###########################################
# Cursors and Library Cache
###########################################
open_cursors=300

###########################################
# Database Identification
###########################################
db_domain=antapex.org
db_name=test10g

###########################################
# Diagnostics and Statistics
###########################################

# Diagnostic locations (logfiles etc..) 10g parameters:
background_dump_dest=C:\oracle/admin/test10g/bdump
core_dump_dest=C:\oracle/admin/test10g/cdump
user_dump_dest=C:\oracle/admin/test10g/udump

# Diagnostic locations (logfiles etc..) 11g parameters:
DIAGNOSTIC_DEST=C:\oracle\

###########################################
# File Configuration
###########################################
control_files=("C:\oracle\oradata\test10g\control01.ctl", "C:\oracle\oradata\test10g\control02.ctl", "C:\oracle\oradata\test10g\control03.ctl")
db_recovery_file_dest=C:\oracle/flash_recovery_area
db_recovery_file_dest_size=2147483648

###########################################
# Job Queues
###########################################
job_queue_processes=10

###########################################
# Miscellaneous
###########################################
# 10g example:
# compatible=10.2.0.1.0

# 11g example:
compatible=11.1.0.0.0

###########################################
# Processes and Sessions
###########################################
processes=350

###########################################
# Memory
###########################################
# Example 10g setting:
sga_target=287309824

# Example 11g setting:
memory_target=287309824
###########################################
# Security and Auditing
###########################################
audit_file_dest=C:\oracle/admin/test10g/adump
remote_login_passwordfile=EXCLUSIVE

###########################################
# Shared Server
###########################################
dispatchers="(PROTOCOL=TCP) (SERVICE=test10gXDB)"

###########################################
# Sort, Hash Joins, Bitmap Indexes
###########################################
pga_aggregate_target=95420416

###########################################
# System Managed Undo and Rollback Segments
###########################################
undo_management=AUTO
undo_tablespace=UNDOTBS1

###########################################
# Archive Mode:
###########################################
LOG_ARCHIVE_DEST_1=c:\oracle\oradata\archlog
LOG_ARCHIVE_FORMAT='arch_%t_%s_%r.dbf'

- Example 2: Exported 11g spfile to an ascii init file

test11g.__db_cache_size=281018368
test11g.__java_pool_size=12582912
test11g.__large_pool_size=4194304
test11g.__oracle_base='c:\oracle' #ORACLE_BASE set from environment
test11g.__pga_aggregate_target=322961408
test11g.__sga_target=536870912
test11g.__shared_io_pool_size=0
test11g.__shared_pool_size=230686720
test11g.__streams_pool_size=0
*.audit_file_dest='c:\oracle\admin\test11g\adump'
*.audit_trail='db'
*.compatible='11.1.0.0.0'
*.control_files='c:\oradata\test11g\control01.ctl','c:\oradata\test11g\control02.ctl','c:\oradata\test11g\control03.ctl'
*.db_block_size=8192
*.db_domain='antapex.nl'
*.db_name='test11g'

*.db_recovery_file_dest='c:\oracle\flash_recovery_area'
*.db_recovery_file_dest_size=2147483648
*.diagnostic_dest='c:\oracle'
*.dispatchers='(PROTOCOL=TCP) (SERVICE=test11gXDB)'
*.memory_target=857735168
*.open_cursors=300
*.processes=350
*.remote_login_passwordfile='EXCLUSIVE'
*.undo_tablespace='UNDOTBS1'


19.4 IMPORTANT SPFILE/INIT PARAMETERS:

Let's review some of the most important init.ora parameters.


19.4.1. Parameters related to Oracle Managed Files OMF:

DB_CREATE_FILE_DEST = directory | ASM disk group
DB_CREATE_ONLINE_LOG_DEST_n = directory | ASM disk group

DB_CREATE_FILE_DEST specifies the default location for Oracle-managed datafiles.
This location is also used as the default location for Oracle-managed control files
and online redo logs if none of the DB_CREATE_ONLINE_LOG_DEST_n initialization parameters are specified.

DB_CREATE_ONLINE_LOG_DEST_n (where n = 1, 2, 3, ... 5) specifies the default location
for Oracle-managed control files and online redo logs.
If more than one DB_CREATE_ONLINE_LOG_DEST_n parameter is specified, then the control file and
online redo log is multiplexed across the locations of the other DB_CREATE_ONLINE_LOG_DEST_n parameters.
One member of each online redo log is created in each location, and one control file is created in each location.

Example:
DB_CREATE_FILE_DEST = '/u01/oracle/test10g'
DB_CREATE_ONLINE_LOG_DEST_1= '/u02/oracle/test10g'
DB_CREATE_ONLINE_LOG_DEST_2= '/u03/oracle/test10g'


19.4.2. Parameters related to the FLASH RECOVERY AREA (10g / 11gR1) or FAST RECOVERY AREA (11gR2)

In 11gR2, the "FLASH RECOVERY AREA" is renamed to "FAST RECOVERY AREA".

A flash recovery area is a location in which Oracle Database can store and manage files
related to backup and recovery. It is distinct from the database area.

Two parameters define the "FLASH RECOVERY AREA" or "FAST RECOVERY AREA":

You specify a flash recovery area with the following initialization parameters:
DB_RECOVERY_FILE_DEST (= location on filesystem or ASM)
DB_RECOVERY_FILE_DEST_SIZE (size reserved for DB_RECOVERY_FILE_DEST)

DB_RECOVERY_FILE_DEST specifies the default location for the flash recovery area. The flash recovery area contains
archived redo logs, flashback logs, and RMAN backups.

The DB_RECOVERY_FILE_DEST parameter makes sure that all flashback logs, RMAN backups, archived logs,
are under the control of the Instance.
Specifying this parameter without also specifying the DB_RECOVERY_FILE_DEST_SIZE initialization parameter is not allowed.

DB_RECOVERY_FILE_DEST_SIZE specifies (in bytes) the hard limit on the total space to be used
by target database recovery files created in the flash recovery area.

You cannot enable these parameters if you have set values for the LOG_ARCHIVE_DEST and
LOG_ARCHIVE_DUPLEX_DEST parameters. You must disable those parameters before setting up
the flash recovery area. You can instead set values for the
LOG_ARCHIVE_DEST_n parameters. If you do not set values for local LOG_ARCHIVE_DEST_n,
then setting up the flash recovery area will implicitly set LOG_ARCHIVE_DEST_10 to the flash recovery area.
Oracle recommends using a flash recovery area, because it can simplify backup and recovery operations for your database.

You may also set the DB_FLASHBACK_RETENTION_TARGET parameter.

This specifies in minutes how far back you can "flashback" the database, using the socalled "Flashback" framework.
How far back one can actually "flashback" the database, depends on how much flashback data
Oracle has kept in the recovery area.

Example:
db_recovery_file_dest='c:\oracle\flash_recovery_area'
db_recovery_file_dest_size=2147483648


19.4.3. Parameters related to Automatic Diagnostic Repository ADR:

This is for 11g only.
Oracle 9i and 10g uses the well known locations for the alert.log and trace files, which are specified by:
BACKGROUND_DUMP_DESTINATION, USER_DUMP_DESTINATION and CORE_DUMP_DESTINATION.

ADR is defined by the DIAGNOSTIC_DEST parameter, which specifies a location on the filesystem.

ADR is new in 11g, and is partly XML based. The logging (alert.log) and traces are part of ADR.

DIAGNOSTIC_DEST = { pathname | directory }
As of Oracle 11g Release 1, the diagnostics for each database instance are located in a dedicated directory,
which can be specified through the DIAGNOSTIC_DEST initialization parameter.

This location is known as the Automatic Diagnostic Repository (ADR) Home. For example, if the database name is proddb
and the instance name is proddb1, the ADR home directory would be "$DIAGNOSTIC_DEST/diag/rdbms/proddb/proddb1".

So, if the DIAGNOSTIC_DEST was placed to "C:\ORACLE", you would find the new style XML alert.log "log.xml" in, for example,
"C:\oracle\diag\rdbms\test11g\test11g\alert\log.xml" for the test11g instance.

The old plain text alert.log is still available in:
"C:\oracle\diag\rdbms\test11g\test11g\trace\alert_test11g.log"


19.4.4. Parameters related to DATABASE NAME AND DOMAIN:

The databasename, and the domain where it "resides", are defined by the parameters:
DB_NAME
DB_DOMAIN

The DB_NAME initialization parameter determines the local name component of the database name,
the DB_DOMAIN parameter, which is optional, indicates the domain (logical location) within a
network structure. The combination of the settings for these two parameters must
form a database name that is unique within a network.
For example, a database with a global database name of "test10g.antapex.org",
you would have the parameters like so:

DB_NAME = test10g
DB_DOMAIN = antapex.org


19.4.5. Parameters related to PROCESSES AND SESSIONS:

PROCESSES=max number of concurrent OS processes which can connect to the database.
SESSIONS=specifies the maximum number of sessions that can be created in the database.

Example:
PROCESSES=500

The PROCESSES initialization parameter determines the maximum number of
operating system processes that can be connected to Oracle Database concurrently.
The value of this parameter must be a minimum of one for each background process plus
one for each user process. The number of background processes will vary according
the database features that you are using. For example, if you are using Advanced
Queuing or the file mapping feature, you will have additional background processes.
If you are using Automatic Storage Management, then add three additional processes
for the database instance.

SESSIONS specifies the maximum number of sessions that can be created in the system.
Because every login requires a session, this parameter effectively determines the maximum number of
concurrent users in the system. You should always set this parameter explicitly to a value equivalent
to your estimate of the maximum number of concurrent users, plus the number of background processes,
plus approximately 10% for recursive sessions.

Note: it would not be a very good idea to specify the SESSION= parameter
which is lower than the PROCESSES parameter.

The default no of sessions: (1.1 * PROCESSES) + 5


19.4.6. Parameters related to MEMORY and SGA:

Memory = SGA memory (like buffer cache + all pools) + All server processes and background processes PGA's

- 11g: (Full) Automatic Memory Management = AMM -> by using parameter "MEMORY_TARGET="
- 10g/11g: Automatic Shared Memory Management = ASMM -> by using parameter"SGA_TARGET="
or
- 11g/10g/9i: Manual Memory Management, where you can specify all the individual buffers and poolsizes + pga's.

So, 11g AMM (is Total memory management) "is more" automatic than 11g/10g ASMM (auto SGA management) which is more automatic
than manual configuration of 11g/10g/9i cache, pools and pga's.

=> For 11g and 10g, it is possible to use the SGA_TARGET parameter.

"SGA_TARGET=amount_of_memory" is actually a single parameter for the total SGA size under Oracle control, where
automatically all SGA components (buffer cache and all pools) are sized as needed
. When using SGA_TARGET=, then you do not need to specify all individual area's like:

DB_CACHE_SIZE (DEFAULT buffer pool)
SHARED_POOL_SIZE (Shared Pool)
LARGE_POOL_SIZE (Large Pool)
JAVA_POOL_SIZE (Java Pool)

=> For 11g, it goes a step further, and it is possible to use the MEMORY_TARGET parameter.

"MEMORY_TARGET=amount_of_memory" controls all memory automatically (SGA with all pools and buffers, and all pga's).

While it is better to use MEMORY_TARGET in 11g, you can still use the SGA_TARGET parameter to control the SGA only.
Also, it's still possible to manually configure all memory as you see fit, by using all individual parameters
like "SHARED_POOL_SIZE=", "DB_CACHE_SIZE=" etc..

MEMORY_TARGET and SGA_TARGET will perform automatic memory management (memory_target for all memory, sga_target for the SGA)
Both parameters can be used in conjunction with a hard upper limit for the total memory that can be used.
These are: memory_max_target and sga_max_size.
So, the following parameters might be seen as being set in an spfile.ora/init.ora:

11g:
MEMORY_TARGET=
MEMORY_MAX_TARGET=

10g and 11g:
SGA_TARGET=
SGA_MAX_SIZE=

Prior to Oracle 11g, you could set the sga_target and sga_max_size parameters, allowing Oracle to allocate
and re-allocate RAM within the SGA. The PGA was independent from this, and was set by the pga_aggregate_target parameter.

In Oracle 11g you may use the memory_max_target parameter which determines the total maximum RAM for both the PGA and SGA area's
The new MEMORY-TARGET parameter, "targets" for the set size, and even allows RAM to be "stealed" from the SGA
and transferred to the PGA, or the other way around.


19.4.7. Parameters related to ADDM and AWR:

Oracle Diagnostics Pack 11g and 10g includes a self-diagnostic engine built right into the
Oracle Database 11g kernel, called the "Automatic Database Diagnostic Monitor", or ADDM.

To enable ADDM to accurately diagnose performance problems, it is important that
it has detailed knowledge of database activities and the workload the database is
supporting. Oracle Diagnostics Pack 11g (and 10g), therefore, includes a built in repository
within every Oracle 11g (and 10g) Database, called "Automatic Workload Repository (AWR)",
which contains operational statistics about that particular database and other relevant
information. At regular intervals (once an hour by default), the Database takes a
snapshot of all its vital statistics and workload information and stores them in AWR,
and retains the statistics in the workload repository for 8 days.
Also, by default, ADDM runs every hour to analyze snapshots taken by AWR during that period.

Note: for people familiar with older Oracle versions: ADDM and AWR resembles an strongly enhanced
and automatically implemented "STATSPACK".

So, ADDM examines and analyzes data captured in the Automatic Workload Repository (AWR) to determine
possible performance problems in Oracle Database. ADDM then locates the root causes of the performance problems,
provides recommendations for correcting them, and quantifies the expected benefits.

A key component of AWR, is "Active Session History (ASH)". ASH samples the
current state of all active sessions periodically and stores it in memory. The data
collected in memory can be accessed by system views. This sampled data is also
pushed into AWR every hour for the purposes of performance diagnostics.

For 11g, ADDM and AWR/ASH are part of the "Server Manageability Packs". In fact, the components are the following:

- The DIAGNOSTIC pack includes AWR and ADDM.
- The TUNING pack includes SQL Tuning Advisor, SQLAccess Advisor, and so on.

CONTROL_MANAGEMENT_PACK_ACCESS parameter:

The "CONTROL_MANAGEMENT_PACK_ACCESS" parameter determines which of the above components are "switched on".

CONTROL_MANAGEMENT_PACK_ACCESS = { NONE | DIAGNOSTIC | DIAGNOSTIC+TUNING }
Default: DIAGNOSTIC+TUNING

If set to NONE, the ADDM & AWR and TUNING pack, are switched off.

STATISTICS_LEVEL parameter:

STATISTICS_LEVEL specifies the level of collection for database and operating system statistics.

STATISTICS_LEVEL = { ALL | TYPICAL | BASIC }
Default: TYPICAL

Gathering database statistics using AWR is enabled by default and is controlled by the STATISTICS_LEVEL
initialization parameter.
The STATISTICS_LEVEL parameter should be set to TYPICAL or ALL to enable statistics gathering by AWR.
The default setting is TYPICAL.
Setting the STATISTICS_LEVEL parameter to BASIC disables many Oracle Database gathering statistics,
including AWR/ASH, and is not recommended unless you want to reserve as much as possible performance for
the applicative database processes.




20. DIAGNOSTIC/PERFORMANCE TOOLS IN 9i: A FEW WORDS ON STATSPACK:

For the 10g/11g ADDM and AWR implementation, or the successor for STATSPACK, please see section 29.

Although statspack is a typical 8i/9i Diagnostic tool, I still like to spend a few words on it.
For 10g and later, you are recommended to use the newer frameworks.

STATSPACK is a performance diagnostic tool, which is available since Oracle8i.
It's widely used in Oracle 8i and 9i environments. But, from 10g onwards, a renewed framework
was introduced (like for example ADDM). So, in 10g and 11g, ofcourse the newer Diagnostic tools are recommended.
Still, it's usefull to spend a few words on statspack, since it's so incredably easy to use.
And who knows.. maybe you want to use it on 10g as well.
However, correctly interpreting the reports, still requires a reasonable system and Oracle knowledge.
.

20.1 INSTALLING:

It's recommended to create a tablespace "PERFSTAT" first. Since the schema (owner) of the new
diagnostic tables, is the new user "perfstat", it's nice to keep all objects together in a easy
to indentify tablespace.

Next, from sqlplus, run the create script

"$ORACLE_HOME/rdbms/admin/statscre.sql" (Unix) or "%ORACLE_HOME%\rdbms\admin\statscre.sql" (Windows).

This script will ask a few simple questions like who should be the owner (the suggested owner is "perfstat")
and which tablespace you want to use to store perfstat's tables.

Although some additional configuration (after installation) can be done,like altering the "Collection Level",
you are now "basically" setup to create "snapshots" and create "reports".


20.2 A FEW WORDS ON HOW IT WORKS:

You know that there are quite a few dynamic system "views" (v$), which collect database wide statistics,
many of which are related to performance and wait events
Statspack will use a number of true permanent tables which has a one to one correspondence to that
set of v$ views (for example v$sysstat will have a corresponding stats$sysstat table)
Well it's almost one to one, because the statspack table will have some additional columns
of which (in this note) the "snap_id" column is the most interresting one.

When you "activate" statspack, you will create a "snapshot" of the database, meaning
that the set of v$ views are queried, and the results are stored in the "stats$" tables, where these
specific results are identified by a specific "SNAP_ID".
The next time you run statspack, a new SNAP_ID will identify these new measurements.
And so on.. and so on.

It is quite critical to your understanding of the STATSPACK utility that you realize that the information
captured by a STATSPACK snapshot are accumulated values, since most of the v$ views contain accumulated values.
This automatically means, that you only can compare two snapshots, to get meaningfull results.
Examples:

  1. You could create a snapshot early in the morning, and one late in the afternoon, and then analyze the results to see how the database has performed this day.
  2. You could create a snapshot before a certain batch (or other program) runs, and then one when that batch has finished.

Note:
Since the v$ views are cumulative, the stats$ are thus too. But an instance shutdown will "clear" many v$ views,
thus creating a report using snapshots before and after a shutdown, will not generate valid results.


20.3 A FEW WORDS ON USING STATSPACK:

- Creating a snapshot:

Logon (using sqlplus) as perfstat and execute the 'statspack.snap' package.

SQL> execute statspack.snap;

- Creating a report:

The report will just be an ascii file, so it's easy to view the contents.

Log on as perfstat using sqlplus:

% sqlplus perfstat/perfstat

Then run the 'spreport.sql' script that lives in the "ORACLE_HOME/rdbms/admin" directory.

SQL> @?/rdbms/admin/spreport.sql

This script essentially asks three important questions:

- The begin SNAP_ID
- The end SNAP_ID
- And where you want to store the report with what name.

A short while later, you can study that report. The report will show you much information like
general database statistics, top consuming SQL statements, %cpu and duration per SQL etc..


20.4 OTHER NOTES:

- Since "execute statspack.snap" will create a snapshot, it's easy to schedule it from an OS scheduler.
But don't schedule it like "every ten minutes". That will not add any value. Once an hour, or a longer interval,
is recommended.
Also, if you need to analyze batches, it's more sane to schedule it before and after those batch(es).

- If you need to view the snap_id's and at which time they have run, use a query like:

select name,snap_id,to_char(snap_time,'DD.MM.YYYY:HH24:MI:SS')
"Date/Time" from stats$snapshot,v$database;

That information can be used to select the correct start snap_id and end snap_id for your report.



21. USING A CURSOR IN PL/SQL LOOPS:

We are going to illustrate the use of a "cursor" in PLSQL loops.
PLSQL has more "ways" to create loops, like for example using "FOR.." or "WHILE.." loops
But this section wants to give a few examples using a cursor.

In many occasions, you might view a cursor as a virtual table, because you often "declare" the cursor
as being a resultset from a query on one or more tables.

Assuming you work on a testsystem, let's create a testuser first, who will perform
a couple of examples.

CREATE USER albert identified by albert
DEFAULT TABLESPACE USERS
TEMPORARY TABLESPACE TEMP
;

GRANT connect TO albert;
GRANT resource TO albert;
GRANT DBA TO albert;


EXAMPLE 1:

Let's use a cursor to output the contents of a table to your screen.

- Lets connect as albert:

SQL> connect albert/albert

- Now albert will create a simple table:

CREATE TABLE EMPLOYEE
(
EMP_ID NUMBER,
EMP_NAME VARCHAR2(20),
SALARY NUMBER(7,2)
);

- Albert now performs a few inserts:

INSERT INTO EMPLOYEE VALUES (1,'Harry',2000);
INSERT INTO EMPLOYEE VALUES (2,'John',3150);
INSERT INTO EMPLOYEE VALUES (3,'Mary',4000);
INSERT INTO EMPLOYEE VALUES (4,'Arnold',2900);

commit;

- Now we want to output the contents of the table (ofcourse it's easier using a select statement, but we want
to demonstrate the use of a cursor).
Let's try the following code:

SQL> set serveroutput on; -- in order to make sure sqlplus shows output.

-- here is the code:

DECLARE cursor CURTEST IS
   SELECT emp_id, emp_name FROM EMPLOYEE;

cur_rec curtest%rowtype;

begin
  for cur_rec IN CURTEST loop
  dbms_output.put_line(TO_CHAR(cur_rec.emp_id)||' '||cur_rec.emp_name);
  end loop;
end;
/

The first block is the cursor declaration. You notice that "CURTEST" is declared as being the
resultset of a query?
Here we also declare the variable "cur_rec", which (when assigned values) contains a whole "row"
from the cursor. You see? This is a very easy way to assign a whole row to variable in one time!

The second block is the "body" of the code. Here we open (implicitly) the cursor "CURTEST", and define a loop
where "cur_rec" in each cycle of the loop, attains the values from the next row in "CURTEST".
What we then actually do in such a cycle in the loop, is just output two values in "cur_rec" to your screen
using the standard Oracle procedure "dbms_output.put_line()".

Did you notice that we did not explicitly "open" and later (after the loop is done), "close" the cursor?
In the "for var in cursor_name loop .. end loop" structure, the open and close of the cursor is
implicitly done.


EXAMPLE 2:

This time, we use a cursor to update a certain table, with new values and certain values from a second table.

First, albert creates the EMPBONUS table, like so:

CREATE TABLE EMPBONUS
(
EMP_ID NUMBER,
EMP_BONUS NUMBER(7,2)
);

What we want to do now, is fill the EMPBONUS table with emp_id's from EMPLOYEE,
and a calculated bonus amount which is 10% of the employee's salary.
Again, using a simple query, works much faster, but again we want to demonstrate the use of a cursor.

Let's try the following code:

SQL> set serveroutput on; -- in order to make sure sqlplus shows output.

-- here is the code:

DECLARE cursor CURTEST IS
   SELECT * FROM EMPLOYEE;

cur_rec curtest%rowtype;

begin
  for cur_rec IN CURTEST loop
  INSERT INTO EMPBONUS
  VALUES
  (cur_rec.emp_id,0.1*cur_rec.salary);
  commit;
  end loop;
end;
/

Let's see what's in the EMPBONUS table

SQL> select * from EMPBONUS;

EMP_ID EMP_BONUS

  1    200
  2    315
  3    400
  4    290

So, it worked !


MORE ON USING CURSORS:

There are two types of cursors with respect on how the cursor is opened and closed
and whether you need to explicitly FETCH the next row from the cursor.

  1. The "CURSOR FOR LOOP.." structure, which we already have seen above. This one does not use FETCH
    in order to fetch the next row from the cursor. This is implicitly done in the "for..loop".
    Also, here you do not need to open and close the cursor.

  2. The "OPEN cursor, FETCH next, CLOSE cursor" structure.

The first type is really easy to use. The second type gives you a little more control in your code.

The following "cursor attributes" can be used (among others):

%notfound : did we just have fetched the last row in the cursor?
%rowcount : how many rows are already processed or done?
%isopen : is the cursor still open?

As an example of the second type, let's take a look at the next example.
We are going to use a more extended EMPLOYEE table in this example. So we could either add a column, or
just drop and re-create the new EMPLOYEE table again. Let's do the latter.

SQL> connect albert/albert

DROP TABLE EMPLOYEE;

CREATE TABLE EMPLOYEE
(
EMP_ID NUMBER,
EMP_NAME VARCHAR2(20),
SALARY NUMBER(7,2),
JOB VARCHAR2(20)
);

- Albert now performs a few inserts:

INSERT INTO EMPLOYEE VALUES (1,'Harry',2000,'CLERK');
INSERT INTO EMPLOYEE VALUES (2,'John',3150,'DIRECTOR');
INSERT INTO EMPLOYEE VALUES (3,'Mary',4000,'SCIENTIST');
INSERT INTO EMPLOYEE VALUES (4,'Arnold',2900,'CLERK');

commit;

Now, we want to produce a script that will update the SALARY column of the EMPLOYEE table,
with a percentage that depends on the JOB of the employee, that is, a "CLERCK" gets another
salary update than a "DIRECTOR".

-- Here is the code. Also note it uses a type 2 cursor.

DECLARE cursor CUR_EMP IS
  SELECT * FROM employee;

emp_rec CUR_EMP%rowtype;

begin

open CUR_EMP;

  loop
  fetch CUR_EMP into emp_rec;

  exit when CUR_EMP%notfound;

   if emp_rec.job='CLERK' then emp_rec.salary:=emp_rec.salary*1.2;
   elsif emp_rec.job='SCIENTIST' then emp_rec.salary:=emp_rec.salary*1.5;
   elsif emp_rec.job='DIRECTOR' then emp_rec.salary:=emp_rec.salary*1.7;
   end if;

   update EMPLOYEE set salary=emp_rec.salary
   WHERE emp_id=emp_rec.emp_id;

  end loop;
  commit;

close cur_emp;
end;
/

Notes:

If you want to use loops in your scripts, you might also take a look at section 22.
Here we will show some examples of the regular "FOR.." and "WHILE.." loops, which in many cases
are much easier to use.
But I just wanted to touch the subject of an explicit cursor in this document.
Also, if you must process very large tables, then a cursor may not be the most effective way to do that.



22. EXECUTING SCRIPTS FROM THE "SQL>" PROMPT:

If you are at the "SQL>" prompt, you may wonder how to execute your blocks of code, or your scripts.
There are several ways to do that.

- If you have created a procedure, function, or package:

We have not done that yet in this document. In section 26 we are going to illustrate that.

- If you have "just" a block of code (like we have seen in section 21):

A: If you have that code created in your favourite editor, then just copy it, and paste it at
the "SQL>" prompt. This really works.

B: Suppose you have created the block of code using your favourite editor. Suppose you have saved it to a file.
Then you can run it from the "SQL>" prompt using the syntax:

SQL> @path_to_the_file/file_name

Note the use of the "@" symbol here.

Example:

Suppose in "C:\test" I have the file "update_customer.sql". If I want to run it from the "SQL>" prompt,
I can use this statement:

SQL> @c:\test\update_customer.sql

If I already 'was' in the c:\test directory, I can simply use "SQL> @update_customer.sql" because the prompt
tools will per default look in the current directory for the file.

EXECUTING SCRIPTS FROM THE OS PROMPT:

In this section, we might as well give an example of how to run an Oracle sqlplus script
from the operating system prompt, or from a cron job.

Create a shell script like for example:

sqlplus /nolog << EOF
connect / as sysdba
# YOUR STATEMENTS...
exit
EOF

$ORACLE_HOME/bin/sqlplus -s "/ as sysdba" < $tmp_file 2>1
set heading off feedback off
whenever sqlerror exit
select 'DB_NAME=' || name from v\$database;
.. # possible other stuff
exit
EOF



23. USING CONTROLS, AND "FOR.." AND "WHILE.." LOOPS IN PL/SQL:

Here we will present a few representative examples of "looping" structures in PL/SQL.

23.1 USING THE "WHILE..LOOP" STRUCTURE:

Example:

I presume you are working on a testsystem, so let's work as user albert again (see section 21).

let's logon as albert and create the EMPLOYEE table:

CREATE TABLE EMPLOYEE --If that table already exists, use "drop table employee;"
(
EMP_ID NUMBER(6) NOT NULL,
EMP_NAME VARCHAR2(20) NOT NULL,
SALARY NUMBER(7,2)
);

Suppose albert wants to insert 9999 dummy records into that table, he might use the following script.
Ofcourse, it's a silly example, but it nicely demonstrates the use of a "while [condition is true] loop" construct.

declare
i number := 1;
begin
while i<10000 loop
  insert into EMPLOYEE
  values (i,'harry',2500);

  i := i + 1;
end loop;
commit;
end;
/

The first piece of code is a "variable declaration". We want to use the number "i" in our code, that starts out with
the value "1", and increases during each cycle of the loop, until it gets to the value of "10000".
Then the loop exits because the condition "while i<10000" is no longer true.

Here is another example using "WHILE [condition is true] LOOP"

Example:

declare -- again we start with a variable declaration
x number:=5;
begin -- here the "body" starts:

  while x>0 loop
  dbms_output.put_line('I did this '||TO_CHAR(x)||' times.');
  x:=x-1;
  end loop;
end;
/

23.2 USING THE "FOR..LOOP" STRUCTURE:

You typically use the "while" loop if you have an expression that evaluates to "true" for a certain time. As long as the loop cycles,
each time the expression is evaluated again and again to see if it's true or false. If it's false, then the loop exits.
You can clearly see that in the examples above, like in "while x>0" (here the "exprsession is x>0).
But you may not even know beforehand when the expression exactly evaluates to "true" or "false".
Suppose somewhere else in your code, you have a variable "v_proceed". Inside your while loop, there can be
all sorts of statements that may affect the value of "v_proceed". At a certain cycle, it may attain the value "false".
If you created your loop like this:

while v_proceed loop
  do all sorts of statements.. also statements that alter the value of v_proceed

Then the loop exits when "v_proceed" is "false".

So, typically, you use "while" when a certain expression evaluates to "true" (or "false") and you know, or
dont know, when the expression evaluates to the inverse value.

Typically, using the "FOR.. LOOP", you already know beforehand the "range" for which the loop must run.
Here is a very simple example that demonstates the "FOR.. LOOP" structure:

set serveroutput on

declare
  -- nothing to declare
begin
  for x in 0..4 loop
  dbms_output.put_line('I did this '||TO_CHAR(x)||' times.');
  end loop;
end;
/

23.3 USING THE "LOOP.. END LOOP" STRUCTURE:

Maybe the following looping control is the "King of all Oracle loops". It's very simple to use.
It always has the following structure:

loop
  statements (which must be repeated)
way to evaluate if the loop must exit or not
end loop;

So, you always start simply with "loop", and you end the code with "end loop".
But, as with all loops, you need to have a way that evaluates whether the loop must exit or not.
There are a few variants here, and the most used are:

loop
  statements;
if condition then exit;
end loop;

and

loop
  statements;
exit when condition;
end loop;

A few examples will make it clear.

Example 1:

declare
  x number:=5;

begin
  loop
  dbms_output.put_line('I did this '||TO_CHAR(x)||' times.');
  x:=x-1;
  if x=0 then exit;
  end if;
  end loop;
end;
/


Example 2:

declare
  x number:=5;

begin
  loop
  dbms_output.put_line('I did this '||TO_CHAR(x)||' times.');
  x:=x-1;
  exit when x=0; -- here we don't have the "if" test to evaluate if x=0
  end loop;
end;
/



24. HOW TO PUT SQLPLUS OUTPUT IN A SHELL VARIABLE:

Suppose you want to place some sqlplus output into a shell variable.
Here, you should think of a normal sh or ksh shell variable of UNIX or Linux.
The following example shows a script that will do just that.
Ofcourse, the method works best if only one value is returned into that variable.

Example: a sh, ksh or bash script:

login='dbuser/password@DBNAME'

code=`sqlplus -s $login << EOF
SELECT name from PERSON where id=1; # suppose we have the table PERSON, and we only want the name of id=1
exit
EOF`
echo $code # now the variable code should contain that name



25. INSTANCE STARTUP OPTIONS:

The following is important if you just want to manually startup an Instance,
and optionally open the Database.

If an Instance is down, and the database closed, then the following startup options can be used.
Here, a SQLPLUS session is assumed and all environment variable (like ORACLE_SID) are set.


SQL> startup nomount
  • The instance is started and the pfile/spfile is read. So all init parameters are known
    to the instance, like for example SGA parameters.
  • However, the controlfile is NOT read.
  • Also, all databases files stay closed.
SQL> startup mount
  • The instance is started and the pfile/spfile is read. So all init parameters are known
    to the instance, like for example SGA parameters.
  • The controlfile is opened and read, so the instance "knows" all locations of all database files.
  • But, all databases files stay closed.
Usually, this is the state is where you begin a RMAN restore/recovery session,
if for example, you have lost database files, but the controlfiles and online logs are still good.

SQL> startup
  • The instance is started and the init.ora/spfile.ora is read.
  • The controlfile is opened and read.
  • All database files are opened, and the database is ready for use.

Sometimes you start an instance and let it read the controlfile, and then perform some
further configuration (for example, if you need to configure archive mode.)
From that phase, it is easy to open the database and enter the production state.

- Suppose you first started the instance (and let it read the controlfile):

SQL> startup mount

- Next, you want to open the database and make it ready for use:

SQL> alter database open;



26. A FEW 9i,10g,11g RMAN NOTES:

You might consider this section only as a very "light" and simple step-up to RMAN.

26.1 OVERVIEW:

RMAN is considered to be the most important backup/recovery tool for Oracle databases.

With rman, you can make full, or incremental, backups of an open and online database, if that database
is running in archive mode
Alongside to creating a backup of the database, you can backup the "archived redologs" as well (often done in
the same script).

Although graphical interfaces exists to "RMAN" (like the the "Enterprise Manager"), many DBA's just use
it from the OS prompt, or use it from (scheduled) OS shell scripts.

You can use the "rman" prompt tool, just from the OS commandline, like

% rman (on unix/linux)
C:\> rman (on Windows)

This will then bring you to the RMAN> prompt.
RMAN>

From here, you can issue a whole range of commands, like BACKUP, RESTORE,
RECOVER, and reporting commands like LIST, REPORT etc..

But before you can do anything with the "target" database (the database you want to backup),
you need to connect (authenticate) to the target database (and optionally to the catalog, on which more later)

RMAN maintains a record of database files and backups for each database on which it performs operations.
This metadata is called the RMAN repository.
-- The controlfile(s) of the target database, always contains the RMAN backup METADATA (repository).
-- Optionally, you can have a separate dedicated (rman) database, which is called "the catalog".

Having a seperate, dedicated RMAN catalog database, can be handy of you have a lot of databases,
and you want some "central storage" for all metadata (which you can query for all sorts of admin info)
But, the controlfile of each target database, will also hold it's metadata, and even is leading information.
Note: the catalog does not even be a dedicated database: even a dedicated "tablespace" in some database,
might be sufficient.

So, before you can "work" with RMAN, or planning to do "something" with the target, you need to connect
to the target, and optionally also to the "catalog" (if you use one).
So, to connect to the target database (and optionally, the catalog) here are a few examples:
Here we assume that database "PROD" is the target database.

$ export ORACLE_SID=PROD
$ rman

RMAN> connect target /
RMAN> connect target system/password@SID
RMAN> connect target system/password@SID catalog rman/rman@RCAT

In the first example, we just connect (using os authentication) to the target (and we do not have
a separate catalog database).
In the second example, we connect as user "system" to the target (and we do not have
a separate catalog database).
In the last example, we connect to the target as system, and apparantly we connect to the catalog database (RCAT)
using the account "rman".

Or you can also call rman from the prompt, and pass connect parameters on the same commandline, like:

$ rman target sys/password@PROD catalog rman/rman@RCAT (unix)

or

C:\> rman target sys/password@PROD catalog rman/rman@RCAT (windows)

Once connected, you could use commands like:

RMAN> backup database;

or

RMAN> backup incremental level 0 database;

Both commands do the same thing: we used the backup command, to make a full database backup
(full is equivalent to "incremental level 0").
An "rman script" could look like this:

run {
  allocate channel t1 device type disk FORMAT '/backups/ora_df%t_s%s_s%p'';
  backup incremental level 0 database;
  release channel t1;
  }

As you can see, an rman script starts with "run", followed by related statements between { }.
First, you might define one ore more disk (or tape) "channels", which are server sessions.
In the allocate channel command, you also see the "format" (or location) as to where the backups should be stored.
However, it's much more common to have that configured as a socalled persistent setting, like in the following command:

RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK FORMAT '/backups/ora_df%t_s%s_s%p';

The "body" of the script are ofcourse the backup statements (database, or archive logs, or other objects).
Then, if you have opened channels, you also close the channels, so the server sessions will exit.

Such a script as shown above, you could type in from the rman prompt, and after you have entered the last
"}", it will execute.
Ofcourse, you can place such a script in a shell script as well.


26.2 SOME PERSISTENT RMAN CONFIGURATION SETTINGS:

The script shown above, is for certain situations, quite incomplete
You know that you need to backup the archived redologs as well. And having a "controlfile" backup, is critical.

You can configure RMAN to use certain settings, which are then persistent over it's sessions.
If you want to view the current settings, use the "SHOW ALL" command, as in:

RMAN> show all;

This will show you a list of all current settings.
One important setting is the "controlfile autobackup" setting. You might find from the list, that it's "OFF".
If you switch it to "ON", then every RMAN backup, will also include the most current controlfile as a backup.
Normally, that would be great. As an alternative, you can put a controlfile backup as the last statement
in your script, but that's quite cumbersome.

Here are a few examples on how to set the persistent configuration (stored in the metadata repository):

RMAN> configure controlfile autobackup on;
RMAN> configure default device type to disk;
RMAN> configure channel device type disk format '/dumps/orabackups/backup%d_DB_%u_%s_%p';

But if you want, you can always overide some setting, in some of your scripts, like for example the
where on disk the backups are stored:

RUN
{
  ALLOCATE CHANNEL disk1 DEVICE TYPE DISK FORMAT '/disk1/%d_backups/%U';
  ALLOCATE CHANNEL disk2 DEVICE TYPE DISK FORMAT '/disk2/%d_backups/%U';
  ALLOCATE CHANNEL disk3 DEVICE TYPE DISK FORMAT '/disk3/%d_backups/%U';
  BACKUP DATABASE;
  RELEASE CHANNEL disk1;
  RELEASE CHANNEL disk2;
  RELEASE CHANNEL disk3;
}

Note that here the backup is "spreaded" along several backup disks, shortening overall runtime

More on channels:
Manually allocated channels (allocated by using ALLOCATE) should be distinguished from automatically
allocated channels (specified by using CONFIGURE). Manually allocated channels apply only to the RUN job
in which you issue the command. Automatic channels apply to any RMAN job in which you do not manually
allocate channels. You can always override automatic channel configurations by manually allocating channels within a RUN command.

This explains why you will not alwayssee an "allocate channel" command in a run job.


26.3 SOME SIMPLE RMAN BACKUP EXAMPLES:

Here are just a few RMAN backup script examples.

Examples 1 and 2 are old, traditional examples, not using incremental backups.
Here, we just make a full backup of the database, and backup all archived redologs.
This works, but most will agree that using incremental backups might be very beneficial.

Traditional 9i style rman backup scripts:

Example 1: rman script

RMAN> run {
  allocate channel t1 type disk FORMAT '/disk1/backups/%U';
  backup database tag full_251109 ; You may also "tag" (or name) a backup
  sql 'alter system archive log current'; # Just before backup, let's archive the current redolog
  backup archivelog all delete input ; # Are you sure to delete all archives after backup ?
  release channel t1;
  }

Example 2: rman script (using sbt, or that is,"tape")

RMAN> run {
  allocate channel t1 type 'sbt_tape' parms 'ENV=(tdpo_optfile=/usr/tivoli/tsm/client/oracle/bin64/tdpo.opt)';
  backup database tag full_251109 ;
  sql 'alter system archive log current';
  backup archivelog all;
  release channel t1;
  }


10g style rman backup scripts:

On 10g/11g, you can still use backups scripts as shown in examples 1 and 2.
But, examples 3 and 4 are a bit more "modern", and might be a better solution in many situations.
It uses incremental backups.

An incremental backup, contains all changed blocks, with respect to the former backup.
So, if you make a full backup (level 0), at time=t0, and some time later an incremental backup (level 1) at time=t1,
the latter backup will contain all changes that a possible large number of archived redologs will hold as well,
during the interval t1-t0.
It means you do not have to have so much "attention" to those archived redologs (they are still important ofcourse).
Only the archived redologs that were created after the level 1 backup, are important for full recovery.

Example 3: level 0 rman script (full backup)

RMAN> run {
  backup incremental level 0 as compressed backupset database;
  }

Note that the basic command is "BACKUP DATABASE", but all sorts of options can be placed in between
those keywords (BACKUP and DATABASE). Here, we have specified to compress the full backup.

Example 4: level 1 rman script (incremental backup)

RMAN> run {
  backup incremental level 1 as compressed backupset database;
  }

A full database backup, corresponds to an INCREMENTAL LEVEL 0 backup.
An incremental backup, corresponds to an INCREMENTAL LEVEL 1 backup.

An incremental LEVEL 1 backup, will only backup the changed database blocks that have been changed since
the former LEVEL 0 or LEVEL 1 backup.
So, in fact with an incremental level 1, you only capture all changes compared
to the former backup (level 0 or level 1).

RMAN will always chooses incremental backups over archived logs,
as applying changes at a block level is faster than reapplying individual changes.

Specifying the default backup locations for disk backups:

--> Not using a Flash Recovery Area (10g) or Fast recovery Area (11g):

You might wonder where the disk based backups will be stored, since the allocate channel statement
usually does not refer to a disk location.
It's usually handled by setting a persistent rman setting like for example:

RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK FORMAT '/backup/ora_df%t_s%s_s%p';

Here you see the location sepcified as "/backup", while some additional file parameters
determine the format of a 'backup piece', like %t is replaced with a four byte time stamp, %s
with the backup set number, and %p with the backup piece number.

You can also configure an ASM disk group as your destination, as in the following example:

RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK FORMAT '+dgroup1';


--> Using a "Flash Recovery Area" (10g) or "Fast recovery Area" (11g):

Then this will be the default location for all your RMAN backups, unless you override it.


Example 5: unix shell script using rman in the traditional way.

#!/usr/bin/ksh

export ORACLE_SID=PROD
export ORACLE_HOME=/opt/oracle/product/10.2

# Add date to be used in logfile
export TDAY=`date +%a`
export backup_dir = /dumps/oracle/backup
export LOGFILE=$backup_dir/prod.log

echo "Backup Started at `date` \n" >$LOGFILE

$ORACLE_HOME/bin/rman <<'!' 1>> $LOGFILE 2>&1

# connect to the database. Change this to Sys logon if not using /

connect target /

# Allocate Disk channels. You might allocate more if you have sufficient resources:
run {
allocate channel t1 type disk;
allocate channel t2 type disk;

#backup the whole source database.
# Use tags for easy identification from other backups
backup tag whole_database_open format '$backup_dir/df_%u' database;

# archive the current redologfile
sql 'alter system archive log current';

#backup the archived logs
backup archivelog all format '$backup_dir/al_%u';

# backup a copy of the controlfile that contains records for the backups just made
backup current controlfile format '$backup_dir/cf_%u';
}
exit

echo "Backup Finished at `date` \n" >>$LOGFILE


26.4 SOME SIMPLE RMAN RESTORE AND RECOVERY EXAMPLES:

RMAN has it's metadata, and thus it "knows" what "to do" when you need to restore and recover a database.

Especially in 11g, the graphical Enterprise Manager (EM), has some really nifty features to get you
out of trouble when a restore and recovery is needed. But working from the EM is not a subject in this document.
Again, if restore and recovery subjects are important for you (which is true if you are a DBA),
and you use 11g, then you should investigate all options that are available in 11G EM.

Here we will only show a few simple and traditional examples using RMAN for a restore and recovery.

PART 1. COMPLETE RECOVERY:

Example 1: Restore and Recovey of an entire database (database files only):

Important: we still have the controlfiles. Only databasefiles are lost.

Suppose you have crash of some sort, like a diskcrash. If the controlfiles and online redo logs are still present,
a whole database recovery can be achieved by running the script below.
If you have also lost all controlfiles and online redologs, the restore will be a little more involved,
than what is shown below.

run {
  startup mount;
  restore database;
  recover database;
  alter database open;
}

Explanation:
Since the database is damaged (like missing dbf files), you cannot open the database.
Anyway, it should not be openened (and ofcourse it cannot be openened). Suppose you want to restore
over corrupt files, then those files should not be active in anyway.
But we still need the "Instance" to be up, and that will be achieved using "startup mount".
Note that starting the instance using "startup mount", implies that a good controlfile is available,
and at the same time, that command will not open the database.
Next, we use the "restore database" command. Since RMAN knows where to find all backups,
it will apply the last full backup, and if present, it then applies the differential backups.
After all of the above is ready, the database is very likely to be in an inconsistent state, and the last
archived redologs needs to be applied. This is called "recovery".

In some cases, it might also be that after the full backup restore, and optionally the differential backup restore,
that no archived redologs need to be applied, and the last step will then be that the recovery process
uses the "online" redologs for the last steps of recovery.
Obviously then, in this case, the last differential backup that was performed, already contained almost
all change vectors, so for the last step, rman uses the online logs for the latest transactions.


Example 2: Restore and Recovery of a tablespace (except system or undo):

Important: We still have system, undo, redo, and controlfiles. Only database files of a tablespace are lost.

Suppose you have a problem with the SALES tablespace. If you need to restore it, you can use a script
similar to what is shown below.
If it is just an ordinary user tablespace, the database itself can stay online and open.
But, that particular tablespace needs to be in a closed state, before you can restore it.

run {
  sql 'ALTER TABLESPACE SALES OFFLINE IMMEDIATE';
  restore tablespace SALES;
  recover tablespace SALES;
  sql 'ALTER TABLESPACE SALES ONLINE';
}


PART 2. INCOMPLETE RECOVERY:

As you would expect, RMAN allows incomplete recovery to a specified date/time, SCN or sequence number.

Important: we still have the controlfiles and redologs. Only databasefiles are lost.

In this case, the database gets restored to a time prior to changes that are stored in the online redologs.
RMAN will make the database consistent, after restore and recovery, but the restored databases lives with
a max System Change Number (SCN) that is lower than the SCN at the time of crash.
Since in all restore scenario's sofar in this note, we have assumed that the "online redologs" were not affected
by the crash, and only database files are corrupt or missing (possibly due to a diskcrash).
So, the online redologs are "more in the future" than the restored database files.
This situation must be resolved by clearing, or resetting, the online redologs.

run {
  startup mount;
  set until time 'Nov 15 2008 09:00:00';
  # set until scn 1000; # alternatively, you can specify SCN
  # set until sequence 9923; # alternatively, you can specify log sequence number
  restore database;
  recover database;
  alter database open resetlogs;
}


26.5 SOME NOTES ON "BACKUP SET" AND "COPY":

Format of the backup:

Usually, what you will create for backups using RMAN, will be "backup sets".

But, actually, you can create either "backup sets" or "image copies".

  • Backup sets are logical entities produced by the RMAN BACKUP command. It is stored in an rman specific format,
    and will only contain the used blocks of the datafiles, thereby saving space.
  • Image copies are exact byte-for-byte copies of files. It does not save in space the way a backup set does.
    RMAN will create "image copies", when you use the "AS COPY" option with the BACKUP command.

Both Backup sets and image copies are recorded in the RMAN repository.
As said before, usually the default type of "backup set" will be used by rman.
Image copy backups, can only be created on disk.

If you want to change the "default" type, you can use commands like:

RMAN> CONFIGURE DEVICE TYPE DISK BACKUP TYPE TO COPY; # image copies
RMAN> CONFIGURE DEVICE TYPE DISK BACKUP TYPE TO BACKUPSET; # uncompressed backupset

Some examples:

You do not need to use the rman script structure (run { statements }), but you can use direct commands as well.
Returning to the differences of creating "image copies" or "backup sets", here are a few examples:

RMAN> BACKUP AS COPY DATABASE; #image copies

RMAN> BACKUP DATABASE; # backup set



26.6 SPECIFYING THE BACKUP LOCATIONS:

Using Persistent settings:

We already have seen that using 'persistent' configuration settings, you can determine where
per default the backups will be stored, like for example:

RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK FORMAT '/backups/%U';
RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK FORMAT 'c:\rbkup\data_%s_%p_%U.bak';
RMAN> CONFIGURE CHANNEL DEVICE TYPE DISK FORMAT '+dgroup1';

RMAN> CONFIGURE CONTROLFILE AUTOBACKUP ON;
RMAN> CONFIGURE CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE DISK TO '/controlbck/cf%F';

If you have set similar settings as above, you do not need to specify locations in the backup commands and scripts.
Specifically, if you specify explicitly a channel in the run block (allocate channel t1 DEVICE type DISK;)
without the FORMAT specification, then your scripts might fail.

So, or use FORMAT in the persistent settings, or use a complete FORMAT in the ALLOCATE/CONFIGURE channel, or
use a complete FORMAT in the BACKUP command.

Using the FORMAT clause:

You can also specify a FORMAT clause with the individual BACKUP command to direct the output
to a specific location of your choice, like for example:

BACKUP DATABASE FORMAT="/backups/backup_%U";

Backups in this case are stored with generated unique filenames in the location /backups/.
That notice that the %U, used to generate a unique string at that point in the filename, is required.

You can also use the FORMAT clause to backup to an ASM diskgroup. like so:

RMAN> BACKUP DATABASE FORMAT '+dgroup1';

Because ASM controls all filenames, you do not need to specify names any further.



27. HOW TO SEE IF THE DATABASE IS DOING A LARGE ROLLBACK:


Remember, this note is about SQL only, and does not say anything about using Graphical tools like the EM.

If you have a large transaction, that gets interrupted in some way, and the database will then
rollback from the UNDO tablespace, it would be nice to see where it "is now" and how much
undo blocks "are still to go".
One way to see that is using the following query. You will see the number of undo blocks gets lower
and lower as time pass by.

SELECT a.sid, a.saddr, b.ses_addr, a.username, b.xidusn, b.used_urec, b.used_ublk
FROM v$session a, v$transaction b
WHERE a.saddr = b.ses_addr;

This is the same query as was already shown in section 3.4



28. A FEW SIMPLE WAYS TO CLONE A 10g/11g DATABASE:

Problem:

Suppose on Server "A" you have the database "PROD10G" running. This is the "source" database.

Now, you want to quicly "clone" that database to Server "B",
where it will use the databasename "TEST10G".
Here we assume that Server B also has Oracle installed, which is on the same level as on Server A.

There are at least 4 methods available, namely:

- 1. using the good old "create controlfile" statement,
- 2. using the "expdp" datapump utility,
- 3. cloning using RMAN,
- 4. using "transportable tablespaces" method.

Here, we will only touch on methods 1&2&3.

Method 1: using the "create controlfile" statement.

Here we are not using RMAN, or exp, or expdp, to clone the database. Assuming the database is down,
We "simply" use scp (or other copy tool), to copy all database files from ServerA to ServerB.
Then, we use a script, containing the CREATE CONTROLFILE command, to "revive" the database on the other Server.

One drawback is, that the source database needs to be shutdown before the copy phase takes place,
in order to have consistent files. So, here we have a cleanly shutdown database, and thus
we deal with "cold" database files, which we can easily copy from one Server to the other Server.

Note: A similar, but more elaborate, procedure can even be followed using an open database in archive mode.
But, since this is a bit cumbersome, alternatives using "expdp/impdp", or using RMAN, are just simply better.

- On Server B, create a similar directory structure to hold the clone's database files, and logfiles.
For example, that could be something like "/data/oradata/test10g" for the database files,
and something like "/data/oradata/admin/test10g" to hold the bdump, cdump, pfile, adump directories.

- Create an init.ora file for TEST10G, using the init.ora of PROD10G. Ofcourse, you need to edit
that init.ora later on, so that it correctly has the right databasename, and filesystem paths.
If you don't have an init.ora, then you surely have the spfile.ora of PROD10G.
Then, simply create an init.ora, using a similar statement as was shown in section 10, like for example:

CREATE PFILE='/tmp/init.ora'
FROM SPFILE='/data/oradata/admin/prod10g/pfile/spfile.ora';

- copy the init.ora file over to Server B, using "scp" (or similar command),
to for example "/data/oradata/admin/test10g/pfile".

scp init.ora oracle@ServerB:/data/oradata/admin/test10g/pfile

- On ServerB, edit the init.ora and change stuff like the database name, the filepaths of the (to be created), controlefiles, the location of the "background_dump_dest" etc..

- On ServerA, the source machine, now let's create the "CREATE CONTROLFILE.." script.
Start a sqlplus session, logon, and use the statement:

ALTER DATABASE BACKUP CONTROLFILE TO TRACE AS '/tmp/cc.sql';

This will produce an ascii file, which is editable.

- copy the newly created script over to ServerB, for example to the directory
where the databasefiles will also be stored:

scp cc.sql oracle@ServerB:/data/oradata/test10g

- On ServerB, edit the cc.sql script:

Usually, the script has two large similar sections, which almost are identical.
If you do not know what a mean, then just browse through the script. But maybe you only have one section.
Anyway, just leave one block and get rid of all comments.
Also, change all filepaths to resemble the new situation at ServerB.

Especially, you need to DELETE the last lines which should resemble this:

RECOVER DATABASE USING BACKUP CONTROLFILE

ALTER DATABASE OPEN RESETLOGS;

Make sure that those two lines are gone. Also, don't have any blank lines in the script.
Get rid of the STARTUP NOMOUNT command too.

Your create controlfile script should resemble the one that's shown below:

CREATE CONTROLFILE SET DATABASE "TEST10G" RESETLOGS NOARCHIVELOG
MAXLOGFILES 16
MAXLOGMEMBERS 3
MAXDATAFILES 100
MAXINSTANCES 8
MAXLOGHISTORY 292
LOGFILE
GROUP 1 '/data/oradata/test10g/REDO01.LOG' SIZE 50M,
GROUP 2 '/data/oradata/test10g/REDO02.LOG' SIZE 50M,
GROUP 3 '/data/oradata/test10g/REDO03.LOG' SIZE 50M
DATAFILE
'/data/oradata/test10g/SYSTEM01.DBF',
'/data/oradata/test10g/UNDOTBS01.DBF',
'/data/oradata/test10g/SYSAUX01.DBF',
'/data/oradata/test10g/USERS01.DBF',
'/data/oradata/test10g/EXAMPLE01.DBF'
CHARACTER SET WE8MSWIN1252
;

Ofcourse, you may have a lot more datafiles and redologs than my simple example. But make sure, the "structure"
really resembles the structure as shown above, and that there are no blank lines, and that the script just starts
with "CREATE CONTROLFILE..", and that the "RECOVER DATABASE USING BACKUP CONTROLFILE" and "ALTER DATABASE OPEN RESETLOGS"
lines are NOT there.

Note the "SET DATABASE" keywords, because that's how you can change a Database name.

Also note, that at the destination Server, the datadirectories does not HAVE to be exactly the same
as it is on the source Server. For example, if the source machine uses oracle datadirectories like
/u01/data, /u02/data, /u03/data etc.., but you do not have that structure on the destination,
then simply edit the "CREATE CONTROLFILE" script to reflect the correct directories used
at the destination Server.

- Now its time to copy the databasefiles of PROD10G on ServerA.
Start a sqlplus session and logon. Shutdown the database cleanly using:

SQL> shutdown immediate;

After the database has been closed, copy all databasefiles (except controlfiles) to ServerB.

scp * oracle@ServerB:/data/oradata/test10g/

Here I copied all files (database, redolog, and controlfiles) to SeverB.
At ServerB, I can just delete the controlfiles after the copy is ready.

As a last check, check the permissions on the files and directories.
If that's all OK, and the init.ora is OK as well, we can execute the CREATE CONTROLFILE script.

On ServerB:

- Go to the database data directory

cd /data/oradata/test10g

- Set the SID to point to TEST10G:

export ORACLE_SID=TEST10G

- Start sqlplus.

sqlplus /nolog

SQL> connect / as sysdba

- Start the instance using the new init.ora file, but do not mount the database:

SQL> startup nomount pfile='/data/oradata/admin/test10g/pfile/init.ora'

- One the instance has started, let's create the controlfile:

SQL> @cc.txt

Control file created.

Were done ! The TEST10G database is created and opened.

If you have errors, it's usually due to wrong directories and names in the init.ora file, or in the script.

Note: notice that I first went to the datadirectory, where I stored the "cc.sql" script as well as the databasefiles.
This avoids a possible error with terminal/character settings, because sometimes it is seen that executing
a script in the form of "@\path\script" where the "@\" works not properly.


Windows:

The above example works not only in Unix environments, but for example on Windows as well.
Only, in Windows you also need to create an Instance first, before you execute any script.
This is so, because in Windows, any instance is equivalent to a Windows "service".
In Windows, use a command similar to the example below, first.

C:\> oradim -new -sid TEST10G -INTPWD mypassword -STARTMODE AUTO


Cloning a 11g database to another Server:

The procedure is almost identical to what we have seen above.
However, there are a few things to take into account.

1. ADR:

Only, you need to take the new DIAGNOSTICS paradigm into account.
Instead of the 9i or 10g like "bdump", "cdump" etc.. log/trace directories, Oracle 11g uses "ADR",
which is short for Automatic Diagnostic Repository.

The alert log and all trace files for background and server processes are written to the
Automatic Diagnostic Repository (ADR), the location of which is specified by the DIAGNOSTIC_DEST
initialization parameter.

2. Fast Recovery Area:

The Flash Recovery area, is now called the Fast recovery Area.

Ofcourse, if you create an init.ora from an 11g spfile.ora, you would have seen those differences,
and you automatically would have created the neccessary structures on the target machine.


Note that in this procedure, we had the "luxury" to shutdown the source database, so that
we have a fully consistent set of files, which we copied over to ServerB.
After the copy to ServerB is ready, the original database can be immediately brought online again.

So, in this case, we do not need to RECOVER anything.

If you cannot close the source database, because it's strictly 24 x 7, or the filecopy is expected
to take too much time, then you can consider an RMAN, or an expdp based cloning procedure.


Method 2: using the "expdp" and "impdp" utilities.

In this method, the source database stays open and online. However, if it is anticipated
that a huge amount of data is involved, and you might not have sufficient space for the
exportfile, you might consider option 2.3, which avoids using a dump file altogheter.

However, using expdp and impdp in the traditional way, that is, using dumpfiles, then
Oracle needs a "directory" object. It is a true location on a filesystem, which
simply needs to be "registered" in the Oracle metadata.

Just select a suitable location on some filesystem. In the examples below, I just used
the "/home/oracle/dump" directory.
Keep in mind that the directory needs sufficiently free space, enough to hold the
exportfile (at source and destination Server).

- Registering the directory within Oracle (at target and destination Server):

SQL> CREATE OR REPLACE DIRECTORY BACKUPDIR AS '/home/oracle/dump';

SQL> GRANT ALL ON BACKUPDIR TO PUBLIC; -- only for test, otherwise tighten security.


using the "expdp" and "impdp" utilities, here too, we can distinguish between several cases.

2.1 Exporting and importing to the same schema:

If the database objects (tables, indexes, packages etc..) are effectively residing
in one schema (account), we can choose to export and import the whole database,
or just the objects (and data) of that one schema. In this case, we expdp just that schema.
Here, we shall do the latter.

  • On both Servers, if needed, create a directory object similar as to what was shown above.
  • On the target, create the Oracle database with tablespaces similar as to what the source has.
    This should not be too much work, since a database and it's objects can be simply scripted
    with toad or other utilities.
  • Create the same schema at the target Oracle install. Suppose the schema is "HR".
  • At the source machine, logon as user oracle and check if the $ORACLE_HOME and $ORACLE_SID
    environment variables are in place.
  • Create the export:

    $ expdp system/password@SID schemas=HR directory=BACKUPDIR dumpfile=HR.dmp logfile=expHR.log
  • From serverA, scp the HR.dmp file to serverB, for example like so:

    [oracle@ServerA /home/oracle/dump $] scp HR.dmp oracle@ServerB:/home/oracle/dump
  • At the destination Server, logon as oracle and check the environment variables.
  • Perform the import:

    $ impdp system/password@SID schemas=HR directory=BACKUPDIR dumpfile=HR.dmp logfile=impHR.log
  • Scan the "impHR.log" logfile for errors.

2.2 Exporting and importing to different schema's:

If the database objects (tables, indexes, packages etc..) are effectively residing
in one schema (account), we again can simply expdp just that one schema.
However, in many cases it is desired that at the target Server, a different schema
should be used. This is no problem. We can follow all of the above, with the exception
of the statements as shown below.

Suppose the source schema is called "HR", and the schema at the target is called "HR2".

  • Create the export:

    $ expdp system/password@SID schemas=HR directory=BACKUPDIR dumpfile=HR.dmp logfile=expHR.log
  • From serverA, scp the HR.dmp file to serverB, for example like so:

    [oracle@ServerA /home/oracle/dump $] scp HR.dmp oracle@ServerB:/home/oracle/dump
  • At the destination Server, logon as oracle and check the environment variables.
  • Perform the import:

    $ impdp system/password@SID directory=BACKUPDIR dumpfile=HR.dmp logfile=impHR2.log REMAP_SCHEMA='HR':'HR2'
With the old "exp" and "imp" utilities, at using "imp", you could use the "FROMUSER" and "TOUSER"
clauses, in order to import the objects and data to another schema.

For the same purpose, with "impdp", use the "REMAP_SCHEMA" clause.


2.3 Exporting and importing using the network:

In sections 2.1 and 2.2, we used "expdp" on the source Server to create an intermediate dumpfile.
Next, we needed to transfer that dumpfile from the source Server to the destination Server.
Next, we used "impdp" on the destination Server, using the copy of that dumpfile.

There might be various reasons why you can't or do not want to use an intermediate dumpfile
at all.

This is indeed possible. All we need to do is create a "database link" on the destination Server,
that "points" to the Oracle instance at the source Server.

In section 7.8, we have seen a simple example of such a "database link".
If needed, take a look at section 7.8 again.

To apply it in our situation, we should use a procedure like the following:

At the destination Server Instance, create a database link which uses the schema at the source instance.

For example:

SQL> create database link HRLINK connect to HR identified by password using 'sourcedb';

Working from the destination server instance, it should now already be possibly to query
the tables and views which reside in the HR schema, in the source instance.

Now, let's do the import:

$ impdp system/password@SID DIRECTORY=BACKUPDIR NETWORK_LINK=HRLINK remap_schema=HR:HR2


Method 3: using the RMAN "duplicate database" command.

You can use RMAN to simply duplicate a database to some target instance
on a second Server.
Although the method is originally intended to create a Standby database in DataGuard, we can also
use it to simply duplicate a database, and not configure anything furher for Dataguard.
Suppose you have Server1, with an instance supporting the DB1 database.
Now, on Server 2, you have installed the Oracle database software too.
Suppose it's your intention to create a DB2 database, on Server2, which is a copy of DB1.
The following method might work for you. The next basic listing probably needs some refinement,
but the "skeleton" of the method is like this:

!! Important: try this first on two Test Servers !!

  • Make or modify the SQLNet files (tnsnames, listener) on both Servers, so that in principle
    DB1 can "reach" DB2, and the otherway around, using SQLNet identifiers.
  • Copy the init.ora of SRCDB to Server2, to the same location. See section 10 to find out
    how to create an init.ora from a spfile.ora.
  • Create a directory structure on Server2, similar to what exists on Server1, with respect to
    database files, logfiles etc..
  • On Server2, you also use the same "oracle" account and group (uid,gid), just as it is on Server1.
  • chown all datadirectories etc.. to the user:group, just as it is on Server1.
  • On Server 2, edit the "init.ora" to reflect the situation as it will be on Server2, that is,
    database name, controlfile locations, etc..
  • It would be great if you already used a password file on Server1. If so, create one too on Server2
    using the same password for sys.
  • start the "auxilary instance" on Server2, using "startup nomount pfile=path_to_pfile"
  • Now start an RMAN session like so:

    RMAN> connect target sys@DB1
    RMAN> connect catalog catalogowner@catalogdb
    RMAN> connect auxiliary sys@DB2
    RMAN> duplicate target database for standby from active database;

Due to the "for standby" keywords, the database will get a unique DBID.

Per default, RMAN does not recover the database. Use the DORECOVER option of the DUPLICATE command
to specify that RMAN should recover the standby database.
Or you can recover using archived logs.

In an RMAN For using the active database option, in a Data Guard setup, a script like below can be used:

RMAN> DUPLICATE TARGET DATABASE FOR STANDBY FROM ACTIVE DATABASE
DORECOVER
SPFILE
SET "db_unique_name"="SOUTH" COMMENT ''The Standby''
SET LOG_ARCHIVE_DEST_2="service=SOUTH ASYNC REGISTER
VALID_FOR=(online_logfile,primary_role)"
SET FAL_SERVER="CENTRAL" COMMENT "Is primary"
NOFILENAMECHECK;



29. A FEW NOTES ON 10G/11G ADDM and AWR:

29.1 ADDM, AWR and ASH: What is it?

Oracle Diagnostics Pack 11g (and 10g) includes a self-diagnostic engine built right into the
Oracle Database 11g kernel, called the "Automatic Database Diagnostic Monitor" ADDM.

To enable ADDM to accurately diagnose performance problems, it is important that
it has detailed knowledge of database activities and the workload the database is
supporting. Oracle Diagnostics Pack 11g (and 10g), therefore, includes a built in repository
within every Oracle 11g (and 10g) Database, called "Automatic Workload Repository" (AWR),
which contains operational statistics about that particular database and other relevant
information. At regular intervals (once an hour by default), the Database takes a
snapshot of all its vital statistics and workload information and stores them in AWR,
and retains the statistics in the workload repository for 8 days.
Also, by default, ADDM runs every hour to analyze snapshots taken by AWR during that period.

Per default, all AWR objects are stored in the SYSAUX tablespace.

Note: for people familiar with older Oracle versions: ADDM and AWR resembles an strongly enhanced
and automatically implemented "STATSPACK".


So, ADDM examines and analyzes data captured in the Automatic Workload Repository (AWR) to determine
possible performance problems in Oracle Database. ADDM then locates the root causes of the performance problems,
provides recommendations for correcting them, and quantifies the expected benefits.

A key component of AWR, is Active Session History (ASH). ASH samples the
current state of all active sessions every second and stores it in memory. The data
collected in memory can be accessed by system views. This sampled data is also
pushed into AWR every hour for the purposes of performance diagnostics.

Gathering database statistics using AWR is enabled by default and is controlled by the STATISTICS_LEVEL initialization parameter.
The STATISTICS_LEVEL parameter should be set to TYPICAL or ALL to enable statistics gathering by AWR.
The default setting is TYPICAL. Setting the STATISTICS_LEVEL parameter to BASIC disables many Oracle Database features,
including AWR, and is not recommended.

Overview Architecture:



29.2 Relevant INITIALIZATION Parameters:

1. 10g/11g: STATISTICS_LEVEL

STATISTICS_LEVEL = { ALL | TYPICAL | BASIC }
Default: TYPICAL

STATISTICS_LEVEL specifies the level of collection for database and operating system statistics.
The Oracle Database collects these statistics for a variety of purposes, including making self-management decisions.

The default setting of TYPICAL ensures collection of all major statistics required for database
self-management functionality and provides best overall performance.

When the STATISTICS_LEVEL parameter is set to ALL, additional statistics are added to the set of statistics
collected with the TYPICAL setting. The additional statistics are timed OS statistics and plan execution statistics.

Setting the STATISTICS_LEVEL parameter to BASIC disables the collection of many of the important statistics
required by Oracle Database features and functionality.

2. 11g: CONTROL_MANAGEMENT_PACK_ACCESS

The CONTROL_MANAGEMENT_PACK_ACCESS parameter (11g, not 10g) specifies which of the Server Manageability Packs should be active.

- The DIAGNOSTIC pack includes AWR, ADDM, and so on.
- The TUNING pack includes SQL Tuning Advisor, SQLAccess Advisor, and so on.

A license for DIAGNOSTIC is required for enabling the TUNING pack.

CONTROL_MANAGEMENT_PACK_ACCESS = { NONE | DIAGNOSTIC | DIAGNOSTIC+TUNING }
Default: DIAGNOSTIC+TUNING

If set to NONE, those features are switched off.

29.3 How you can Interact or use ADDM:
  1. Using Enterprise Manager Grid or DB Control
  2. Using PLSQL API DBMS packages
  3. Ready supplied scripts (that will ask for parameters, for example start and end snapshot id's)
    like the script "@?/rdbms/admin/addmrpt"
  4. View the many DBA_ADDM* and DBA_ADVISOR* views
=> Using the Enterprise Manager is the most easy way. Here you can immediately see the "ADDM findings", as shown
in the figure below. Also, using the EM, you can create and otherwise manage AWR snapshots.


Using ADDM via the Enterprise Manager :



=> Using PLSQL API DBMS Packages:

There are many packages for controlling ADDM and AWR.
Here is a very simple example on how to analyze the database, using two snapshots, and how to retrieve
the report.

DBMS_ADDM.ANALYZE_DB (
task_name IN OUT VARCHAR2,
begin_snapshot IN NUMBER,
end_snapshot IN NUMBER,
db_id IN NUMBER := NULL);

var tname VARCHAR2(60);
BEGIN.
:tname := 'my_database_analysis_mode_task';
DBMS_ADDM.ANALYZE_DB(:tname, 11, 12);
END.

To see a report:

SET LONG 100000
SET PAGESIZE 50000
SELECT DBMS_ADDM.GET_REPORT(:tname) FROM DUAL;



30. A FEW connect STRING EXAMPLES:

Just a few examples:

=> RMAN + Target database:

$ export ORACLE_SID=PROD
$ rman

RMAN> connect target /
RMAN> connect target sys/password
RMAN> connect target system/password@SID
RMAN> connect catalog username/password@catalog
RMAN> connect target system/password@SID catalog rman/rman@RCAT

$ rman target sys/password@prod1 catalog rman/rman@rcat

=> Connect database:

-> Using nolog and provide credentials later:

$ sqlplus /nolog
SQL> connect / as sysdba

$ sqlplus /nolog
SQL> connect sys/password as sysdba
SQL> connect sys/password@TEST11g as sysdba

connect / AS sysdba
connect / AS sysoper
connect /@net_service_name AS sysdba
connect /@net_service_name AS sysoper

REMOTE_LOGIN_PASSWORDFILE=exclusive

Grant user scott SYSDBA.

CONNECT scott/tiger AS SYSDBA

-> Calling sqlplus from OS prompt and provide credentials:

$ sqlplus sys/password as sysdba
$ sqlplus sys/password@SID as sysdba
$ sqlplus '/ as sysdba'

$ sqlplus username@\”myhost:1522/orcl\”

albert@"dbhost.example.com/orcl.example.com"
albert@"192.0.2.1/orcl.example.com"
albert@"[2001:0DB8:0:0::200C:417A]/orcl.example.com"


-> No tnsnames.ora:

$ sqlplus user/password@(description=(address_list=(address=.......SID)))
$ sqlplus "user/password@(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(Host=hostname.network)(Port=1521))(CONNECT_DATA=(SID=remote_SID)))"


-> From a shell script:

$ORACLE_HOME/bin/sqlplus -s "/ as sysdba" < $tmp_file 2>1
set heading off feedback off
whenever sqlerror exit
select 'DB_NAME=' || name from v\$database;
.. # possible other stuff
exit
EOF

$ sqlplus /nolog << EOF
connect / as sysdba
startup
EOF



31. UNSTRUCTURED PLSQL .txt FILE:

Quite some time ago, I created (or compiled actually) a note that touches on PLSQL.
It's quite old, but still has quite nice info, and examples, I believe.

I you would like to try it, then use this link.



32. HOW TO SOLVE BLOCK CORRUPTION:

There are several tools to detect, and "solve", Oracle block corruptions.
Among which are:
  1. The "dbv" OS prompt utility, to "scan" files.
  2. The SQL statement "ANALYZE TABLE [table_name] VALIDATE STRUCTURE" (with optional clauses listed).
  3. Viewing rman or expdp logs when creating backups.
  4. Some v$ and DBA_ views, like "V$DATABASE_BLOCK_CORRUPTION".
  5. Inspecting the logging/diagnosing facility (watching ORA-600, ORA-01578, ORA-01110 entries).
  6. executing the PLSQL procedure DBMS_REPAIR.SKIP_CORRUPT_BLOCKS() as a quick fix.
  7. executing the PLSQL procedure DBMS_REPAIR.FIX_CORRUPT_BLOCKS() to try to repair.
  8. Using the SET EVENTs parameter to skip troublesome blocks.
  9. Historically, in the past you could use the "BBED" utility.
  10. Using smart queries to query "around" bad blocks.
  11. and other methods....
Quite some time ago, I created a note that touches those subjects.
It's actually targeted for 10g/11g. But if you would like to try it, then use this link.



33. BIRDS-EYE VIEW ON INSTANCE STRUCTURE AND PROCESSES:

Overview Instance structure and processes:




34. Appendices:

Appendix 1.

It's may look weird, but the following doc is an Excel file. It contains some facts about Oracle 10g/11g.
If you would like to try it, use this link (.xls file).


Part 2:

Main Contents Part 2: Specific 12C


35. "EM Cloud Control 12c" or "EM Database Express interface 12c":

EM Database Express:

When you have just a single instance to manage, then you can use the default
and "lightweight" webbased Enterprise Manager "Express 12c".
At the install of the database software 12c plus database, it will be setup automatically.

Use:

https://hostname:portname/em

Like https://starboss.antapex.nl:5500/em

Finding the port if you forgot it, using sqlplus:

SQL> select dbms_xdb.getHttpPort() from dual;

GETHTTPPORT
-----------
8080

SQL> select dbms_xdb_config.getHttpsPort() from dual;

GETHTTPSPORTM
------------
5500


The latter port is the https port.
Be sure that SSL and TLS is enabled in your browser.

Or use a prompt command:

$ lsnrctl status | grep -i http
C:\> lsnrctl status | find "HTTP"

EM Cloud Control 12c:

This is a more elaborate distributed environment, with Management Agents on Instances,
which collect information and communicate with the Oracle Management Service(s) (OMS), and
a central repository database.

This is the architecture of choice for larger environments.

You can connect with your browser to an Oracle Management Server and manage the environment.

Before "implementing" any of the infrastructure (oms, repository db, agents etc..),
there are "package" and kernel parameter requirements for each supported Unix or Linux OS.
See the Oracle documentation.

For any platform, specific users/groups need to be setup.

Group: oinstall
User: oracle (oracle:oinstall)


Start Cloud Control:

Starting Cloud Control and All Its Components.

=>Database:

-Set the ORACLE_HOME environment variable to the Management Repository database home directory.
-Set the ORACLE_SID environment variable to the Management Repository database SID (default is asdb).
-Start the Net Listener:
$PROMPT> $ORACLE_HOME/bin/lsnrctl start
-Start the Management Repository database instance:
ORACLE_HOME/bin/sqlplus /nolog
SQL> connect SYS as SYSDBA
SQL> startup
SQL> quit

=>OMS:

$ OMS_HOME/bin/emctl start oms

=>Agent:

$ AGENT_HOME/bin/emctl start agent

Stopping Cloud Control and All Its Components.

$ emctl stop oms -all
$emctl stop agent
shutdown the database

-Listing targets of an agent:

Change directory to the AGENT_HOME/bin directory (UNIX) or the AGENT_HOME\bin directory (Windows).

$ emctl config agent listtargets

-To identify the console port assigned to the Enterprise Manager Cloud Control Console, run the following command:

$ OMS_HOME/bin/emctl status oms -details
$ omsvfy show opmn
$ omsvfy show ports

- Loggin on:

https://[oms_host_name]:[console_port]/em

Ports: often 7788, 7799

Start / Stop / Check Agent:

D:\app\oracle\agent12c\core\12.1.0.3.0\BIN> call emctl status agent

Displays much output on status etc..Mbr>
---------------------------------------------------------------

D:\app\oracle\agent12c\core\12.1.0.3.0\BIN> emctl stop agent

Oracle Enterprise Manager Cloud Control 12c Release 3
Copyright (c) 1996, 2013 Oracle Corporation. All rights reserved.
The Oracleagent12cAgent service is stopping............
The Oracleagent12cAgent service was stopped successfully.

D:\app\oracle\agent12c\core\12.1.0.3.0\BIN> emctl clearstate agent

Oracle Enterprise Manager Cloud Control 12c Release 3
Copyright (c) 1996, 2013 Oracle Corporation. All rights reserved.
EMD clearstate completed successfully

D:\app\oracle\agent12c\core\12.1.0.3.0\BIN> emctl start agent

Oracle Enterprise Manager Cloud Control 12c Release 3
Copyright (c) 1996, 2013 Oracle Corporation. All rights reserved.
The Oracleagent12cAgent service is starting.....................
The Oracleagent12cAgent service was started successfully.

D:\app\oracle\agent12c\core\12.1.0.3.0\BIN> emctl upload agent

Oracle Enterprise Manager Cloud Control 12c Release 3
Copyright (c) 1996, 2013 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
EMD upload completed successfully



36. CONTAINER DATABASE AND PLUGGABLE DATABASES IN 12C:

Either with the DBCA, or SQL Statement, you can specify if you want a container Database or "classical" Database",
at the time that you create the database:

CREATE DATABASE ... ENABLE PLUGGABLE DATABASE

You can create a Container Database (CDB), which can support or hold multiple "pluggable" databases (PDB's).
Each PDB has the "look and feel" as a ordinary database.

If you do not specify the ENABLE PLUGGABLE DATABASE clause, then the newly created database
is a non-CDB (classical database like in 10g/11g, and all other previous versions).

Thus the "CDB" can be viewed as the (root) container, which can hold "PDB" containers.
This way, you can have a PDB for the sales application, or a PDB for the finance department etc..

This architecture is called the "multi-tenant environment".

Overview Architecture CDB and optional PDB's in 12cR1:



Note: Above shows the 12cR1 architecture. In higher releases,
the architecture might change to a certain extent.

So the CDB is the "container", and it can be represented by the "root" CDB$ROOT.

If the database is indeed a CDB, instead of the classical type, then we also have:

- A read-only template PDB$SEED for creating new user PDB's.
- Common users (accounts) in CDB$ROOT which in principle are valid everywhere (all PDB's).
- (local) PDB accounts only appplicable for that PDB.
- (local) PDB Administrator.
- Plugging and un-plugging a PDB at will.
- In its unplugged state, a PDB is a self-contained set of data files and an XML metadata file.
- The table definitions, index definitions, constraints etc.. and data all reside within the PDB's.
- Many techniques like plugging an existing PDB into another CDB.

The CDB has it's SYSTEM, SYSAUX, UNDO, TEMP tablespaces and datafiles, plus the controlfiles and REDO.
Each PDB has a private SYSTEM, SYSAUX, optionally TEMP, and datafile(s).

So, the UNDO, REDO and controlfiles are "global", as well as the logging facilities (alert.log),
which is "global" too.


36.1 Connecting to a PDB or CDB:

This quite the same as any former version (11g, 10g etc...):

SQL> CONN system/password@cdb1
Connected.

SQL> CONN system/password@//localhost:1521/cdb1
Connected.

SQL> SHOW CON_NAME

CDB$ROOT

When you are a common user, you can "go" to any container if you have sufficient permissions.

SQL> ALTER SESSION SET container = pdb1;

SQL> SHOW CON_NAME

PDB1

Each pluggable database registers itself a service to the listener, so the CONNECT statement works as well.

SQL> CONN system/password@pdb1
Connected.

SQL> CONN system/password@//localhost:1521/pdb1
Connected.

36.2 Metadata:

All global metadata is in the root. Per PDB, there exists also local metadata or the dictionary.
Indeed, all PDB's have a system and sysaux tablespace.
In a PDB, also links exists that point to general metadata in the root.

V$DATABASE

This v$ view is well-know from all former versions as well.

Example:

SQL> SELECT NAME, CDB, CON_ID FROM V$DATABASE;

NAME....CDB....CON_ID
CDB1....YES....0

The "CON_ID" is the "container_id".

Very usefull are the following views:

V$CONTAINERS
V$PDBS
V$SERVICES
CDB_PDBS
DBA_PDBS

But almost all well-know DBA_ (or USER_ or ALL_) views have a CDB_ equivalent view.

Also, many DBA_ and V$ views have a CON_ID column which enables you to select or zoom in
into a particular PDB. For example:

SQL> select name from v$datafile where con_id=3;

36.3 Creating a PDB:

Use the "CREATE PLUGGABLE DATABASE" statement to create a PDB or to clone an existing one.

- Creating a PDB from scratch:

If using OMF (Oracle Managed files), then the statement is really very simple:

CREATE PLUGGABLE DATABASE mypdb
ADMIN USER scott IDENTIFIED BY tiger

Otherwise, the statement is like for example (using the seed template):

CREATE PLUGGABLE DATABASE salespdb
ADMIN USER scott IDENTIFIED BY tiger
ROLES = (dba)
DEFAULT TABLESPACE sales
DATAFILE '/disk1/oracle/dbs/salespdb/sales01.dbf' SIZE 250M AUTOEXTEND ON
FILE_NAME_CONVERT = ('/disk1/oracle/dbs/pdbseed/',
'/disk1/oracle/dbs/salespdb/')
STORAGE (MAXSIZE 2G)
PATH_PREFIX = '/disk1/oracle/dbs/salespdb/';

A PDB has it's own SYSTEM and SYSAUX tablespaces, and optionally a TEMP tablespace.
Otherwise it uses the root container's TEMP file.
There is one UNDO tablespace for the CDB. All pluggable databases in the CDB use the same UNDO tablespace.

36.4 Unplugging and Plugging a PDB:

A PDB will get unplugged by connecting to the root CDB and issuing the ALTER PLUGGABLE DATABASE statement
to specify an XML file that will contain all metadata about the PDB after it is unplugged.
That XML file, contains all needed information to enable a CREATE PLUGGABLE DATABASE statement on a target CDB
in order to plug in the PDB.

- Unplugging examples:

SQL> alter pluggable database pdb1 close immediate;

SQL> alter pluggable database pdb1 unplug into '/u01/app/oracle/oradata/pdb1.xml';

SQL> drop pluggable database pdb1 keep datafiles;

SQL> select pdb_name, status from cdb_pdbs where pdb_='PDB1';

No rows found.
- Plugging examples:

The datafiles, and xml file, of pdb1 already exist ofcourse. You can plug it into the current or other CDB:

SQL> create pluggable database pdb1 using '/u01/app/oracle/oradata/pdb1.xml'
NOCOPY
TEMPFILE REUSE;

Having an unplugged pdb, you can move the files as well to a new location while plugging into some CDB:

SQL> create pluggable database pdb2 using '/u01/app/oracle/oradata/pdb2.xml'
COPY
FILE_NAME_CONVERT=('/u01/app/oracle/oradata/cdb1/pdb2','/u01/app/oracle/oradata/cdb2/pdb2');



37. CLONING A DATABASE IN 12C:

Method 1. Cloning a PDB from an existing one:

CREATE PLUGGABLE DATABASE pdb2 FROM pdb1
FILE_NAME_CONVERT = ('/u01/oracle/dbs/pdb1/', '/u01/oracle/dbs/pdb2/')
PATH_PREFIX = '/u01/oracle/dbs/pdb2/';

Method 2. A PDB cloning operation within the same CDB:

1.Use SQL*Plus to close the PDB that you want to clone.

. oraenv
[enter cdb1 at the prompt]

sqlplus / as sysdba

alter pluggable database pdb1 close immediate;

alter pluggable database pdb1 open read only;

exit

2. Create directory for the copy.

cd /stage
mkdir pdb1_clone

Maybe you need to use "chown" too, if you are not "oracle".

From the CDB:

alter system set db_create_file_dest='/stage/pdb1_clone';
3. Make the clone:

Use SQL*Plus to clone the PDB within the same CDB.

create pluggable database pdb1_clone from pdb1;

alter pluggable database pdb1_clone open;

connect system/oracle@localhost:1521/pdb1_clone;

show con_name;

4. Set pdb1 to read/write:

connect / as sysdba

alter session set container=cdb$root;

alter pluggable database pdb1 close immediate;

alter pluggable database pdb1 open;

Method 3. Cloning a 12c non-CDB to a PDB:

Suppose we have a non-cdb database running in 12c named TEST.
We must generate a socalled "manifest file". Shutdown the database and then restart it in Read-Only mode.

On TEST:

shutdown immediate;

startup mount;

alter database open read only;

SQL> exec dbms_pdb.describe
(pdb_descr_file=>'/disk1/app/oracle/noncdb_test.xml');

PL/SQL procedure successfully completed.

shutdown immediate;

On the CDB:

sqlplus sys/oracle as sysdba

Set a suitable OMF dir:

alter system set db_create_file_dest='/disk2/app/oracle/oradata/cdb12c/noncdb_test';

create pluggable database noncdb_test
using '/disk1/app/oracle/noncdb_test.xml' copy;

Pluggable database created.

alter pluggable database noncdb_test open;

Logon to this PDB as sys.
Next, run:

@?/rdbms/admin/noncdb_to_pdb.sql

After a while, when the script has finished, you are ready to go.
#################


38. FORCED FULL DATABASE CACHING IN 12C:

38.1 Recap 10g/11g memory parameters:

In 10g/11g, the most important init.ora/spfile.ora parameter for controlling memory, were:

# Example 10g setting:
sga_target=287309824

# Example 11g setting:
memory_target=287309824

In 11g: (Full) Automatic Memory Management = AMM -, by using parameter "MEMORY_TARGET="
Here the engine fully automatically determines the size of all caches, buffers and all pools.

In 10g: Automatic SGA management, by using parameter "SGA_TARGET="
Here the enigine fully automatically determines the sizes for all structures within the SGA.

Note: in 10g/11g, if you would have reasons to configure memory in a manual way, it would still be possible
by using the individual 10g/11g parameters:

DB_CACHE_SIZE= (DEFAULT buffer pool)
SHARED_POOL_SIZE= (Shared Pool)
LARGE_POOL_SIZE= (Large Pool)
JAVA_POOL_SIZE= (Java Pool)
pga_aggregate_target= (pga sizes, aggregate PGA memory available to all server processes attached to the instance.)

38.2 12c memory parameters:

Most notably, the "MEMORY_TARGET=" is still the main parameter.
As in 11g, MEMORY_TARGET specifies the Oracle systemwide usable memory.
The database tunes memory to the MEMORY_TARGET value, reducing or enlarging the SGA and PGA as needed.

The 10g/11g "SGA_TARGET" still exists in 12C, and can be placed to autotune the SGA as needed,
but structures as PGA and others are out of the scope of this parameter.

38.3 Forced full database caching:

The new 12c feature Full Database Caching, means that Oracle will keep all objects in the buffer cache.
No database page then will be "paged out" anymore.
It's not "the answer" for all situations. Keep in mind that:

- In a multi-tenant environment, force full database caching mode applies
to the entire container database (CDB), including all of its pluggable databases (PDBs).
- The actual database size must be smaller than the buffer cache.
- It might help improve performance when table scans are often used, and/or LOB data access
plays an important role.

In 12c, you must have the SGA_TARGET or MEMORY_TARGET parameter in effect.

To enable Full Database Caching, use the statement:

SQL> ALTER DATABASE FORCE FULL DATABASE CACHING;

The database must be "mounted", but not open, when using this statement.

If you would change the memory parameters, in such a way that the DB does not fit in cache anymore,
the database engine itself turns it "off".

To stop caching, when the database is mounted:

SQL> ALTER DATABASE NO FORCE FULL DATABASE CACHING;



39. CREATE A DATABASE USER IN 12C:

Oracle 12c without container databases (CDB, PDB's), works the same as 10g/11g
with respect to creating user accounts.

Let's review the standard 10g/11g (and previous versions) create and grant statements again:

Some examples of the 10g/11g method, valid for 12c too:

-- EXAMPLE STANDARD DATABASE USER:

CREATE USER albert identified by albert
DEFAULT TABLESPACE SALESDATA -- salesdata is a tablespace
TEMPORARY TABLESPACE TEMP
QUOTA 100M ON SALESDATA
QUOTA 20M ON USERS
;

CREATE USER jward
IDENTIFIED BY h3in3ken
DEFAULT TABLESPACE data_ts
QUOTA 100M ON test_ts
QUOTA 500K ON data_ts
TEMPORARY TABLESPACE temp_ts
PROFILE clerk; -- is a resource profile

GRANT connect TO jward;

-- GRANT standard roles:

GRANT connect TO albert;
GRANT resource TO albert;

-- GRANT specific privileges:

GRANT create trigger TO albert;
GRANT create sequence TO albert;
GRANT create procedure TO albert;

-- DROP the user (including all objects):

DROP USER albert cascade;

-- EXAMPLE DIRECTORY SERVICE (external) USER:

CREATE USER global_user
IDENTIFIED GLOBALLY AS 'CN=alberts, OU=sales, O=antapex, C=NL'
DEFAULT TABLESPACE users
QUOTA 500M ON users;

Some explicit 12c examples if using CDB/PDB's:

All of the above works in 12c too, in a non CDB/PDB database.
However, if you have a "multi-tenant" database (see section 36),
using containers, there exists differences between "common" CDB users, and (local) PDB users.
  1. There can be "database wide" (global) "common" users.
    The user is present in all containers (the root and all PDBs).
    You must be connected to the CDB$ROOT if you want to create such a user.
  2. And there can be (local) PDB users, for using that PDB only.
    The user is only present in a specific PDB. The same username
    can be reused in multiple PDBs, but they are unrelated.
For version 12.1, a common username must be preceded by "c##:". However, by using the init/spfile
parameter "_common_user_prefix" you can change it to another prefix, or even to null.
For a local PDB account, you should not prefix the accountname with "c##:".

Here are a few examples:

SQL> CONN / AS SYSDBA

-- Create the common user using the CONTAINER clause.
SQL> CREATE USER c##admin IDENTIFIED BY password1 CONTAINER=ALL --is default anyway;
GRANT CREATE SESSION TO c##admin CONTAINER=ALL;

SQL> CONN / AS SYSDBA

-- Create a PDB user.
-- Switch container while connected to a common user.
SQL> ALTER SESSION SET CONTAINER = pdb1;

-- Create the local user using the CONTAINER clause.
SQL> CREATE USER testpdb1 IDENTIFIED BY password1 CONTAINER=CURRENT;
GRANT CREATE SESSION TO testpdb1 CONTAINER=CURRENT;

The local PDC equivalent of the DBA role, is the PDB_DBA role.



40. ASM IN 10g/11g AND 12C:

40.1 General concepts of ASM for 10g/11g/12c:

(A text from me from another note...)

1. Introduction.

ASM is short for "Automatic Storage Management".
If you want to use 10g/11g RAC, or just a 10g/11g Single Instance Database, the use of ASM for database storage
(e.g. database files) is certainly recommended in most cases.

The more complex your database is (in terms of the number of database files, and or size), the "more advisable" the use of ASM becomes.
If you want to use RAC, you must use some sort of shared storage (accessible by multiple nodes), that is,
or raw devices, or a cluster filesystem, or ASM.

We can describe ASM as a "Database File System" which provides cluster file system- and Volume Manager capabilities,
that are integrated into the Oracle database 10g kernel.

A few facts:
  1. We are dealing with Oracle 10g or higher. So, its not available on 9i.
  2. On each node, a "small" "lightweight" additional Oracle ASM Instance (+ASM) is needed.
    From a distance, It "looks" like a normal mounted Oracle instance, but its specialized for ASM (volume/disk) services.
    The ASM instance has hardly a dictionary, and it will not mount and open a "true database" as a regular instance would do,
    but instead it will mount diskgroup(s).
  3. 10g: If you are using ASM for database storage, you will (or must) use RMAN for backup/recovery purposes.
    Note: there are a few other methods to manipulate (backup) files like "DBMS_FILE_FRANSFER" or "virtual ftp".
    But your regular filesystem file backup utilities (unix/linux), like tar, cpio, cp etc… will not work on ASM.
    As from 10gR2, the "ASMCMD" command tool is available that can be used to browse (ls, cd commands) the ASM system.
Example: Suppose you have 6 local raw partitions on a Unix system. Now it is possible to assign them
to ASM and create one or more entities called a "diskgroup" on which you can store database files.


When you make disks available to ASM (meaning that you create one or more "diskgroups"; see later),
you first connect to the ASM instance, and use "special" SQL Statements to create the necessary objects.
So SQL statements, when attached to the ASM instance, is your primary interface to create and manage objects,
and to retrieve information.

2. The ASM objects: "diskgroup", "failure group", "disk".

The objects we talk about with ASM are: "diskgroup", "failure group", and "disk".

- A disk could be a LUN exposed to the OS as a disk, or it could even be a local raw partition/disk.

- A failure group, is a number of disks that share (this sounds weird) a "common point of failure".
This is really not a difficult concept. Take a look at the figure below.
Here you see a set of blue an red disks, each on their own diskcontroller. These are examples
of failure groups, because for example, the red disks all share that same one controller.
As you will see later, when we create a 'diskgroup", you can tell ASM that ASM itself should
take measures to guarantee redundancy (via the clause REDUNDANCY "normal", or "high"), or that an external
facility takes care for redundancy, and in this case, it's not ASM itself that will take care
of redundancy. This could be the case if you use a sort of RAID"N" system.

- A diskgroup is a set of disks, managed by ASM as a unit, where redundancy is garanteed,
if you have specified two or more failuregroups, or if you have specified that redundancy
is taken care of by some "external" facility (like a RAID5 system).

Disks and Failure groups:



Let's take a look at a few examples which will make things clear.

Example 1:

$ export ORACLE_SID=+ASM
$ sqlplus /nolog
SQL> connect / as sysdba

Now let's create a diskgroup called "dskgrp1":

SQL> CREATE DISKGROUP dskgrp1
NORMAL REDUNDANCY
FAILGROUP failgrp1 DISK
'/dev/d1',
'/dev/d2',
FAILGROUP failgrp2 DISK
'/dev/d3',
/dev/d4' ;

Although it may appear as such, d3 and d4 are not mirrors of d1 and d2. Rather, ASM uses all the disks
to create a fault-tolerant system. For instance, an extent on the diskgroup might
be created in d1 with a copy maintained on d4. Another extent may be created on d3
with copy on d2, and so on. Failure of a specific disk allows a copy
on another disk to be used so that the operation can continue. For example, you could lose
the controller for both disks d1 and d2, and the system would continue to operate.

In the "REDUNDANCY" clause of the statement, you can specify:

NORMAL: striping of extends is in place, and of any extent, 2 copies exists.
HIGH: striping is in place, and, of any extent, 3 copies exists.
EXTERNAL: It's not ASM that will take care of redundancy, but instead the device (e.g. RAID5 array),
will provide for redundancy.

Example 2:

Yes, this looks a lot like example 1, but please take a furher look.

SQL> CREATE DISKGROUP DATA1 NORMAL REDUNDANCY
FAILGROUP controller1 DISK
'/devices/diska1',
'/devices/diska2',
'/devices/diska3',
'/devices/diska4',
FAILGROUP controller2 DISK
'/devices/diskb1',
'/devices/diskb2',
'/devices/diskb3',
'/devices/diskb4';

In this example, the diskgroup "DATA1" is composed of eight disks that are defined
as belonging to either failure group controller1 or controller2 (you can call them as you like).
Since NORMAL REDUNDANCY level is specified for the disk group, then Automatic Storage Management
provides redundancy for all files created in DATA1, that is, 2 way mirroring is in place,
or in other words, 2 copies exists.
Please note that actually the extents of the file are actually mirrorred over the two failure groups.

When you create a dis group, you can set the Oracle ASM allocation unit size with the AU_SIZE
disk group attribute. The values can be 1, 2, 4, 8, 16, 32, or 64 MB.

The upper statement could therefore also have been in a form as shown below:

CREATE DISKGROUP data NORMAL REDUNDANCY
FAILGROUP controller1 DISK
'/devices/diska1' NAME diska1,
'/devices/diska2' NAME diska2,
'/devices/diska3' NAME diska3,
'/devices/diska4' NAME diska4
FAILGROUP controller2 DISK
'/devices/diskb1' NAME diskb1,
'/devices/diskb2' NAME diskb2,
'/devices/diskb3' NAME diskb3,
'/devices/diskb4' NAME diskb4
ATTRIBUTE 'au_size'='4M',
'compatible.asm' = '11.2',
'compatible.rdbms' = '11.2',
'compatible.advm' = '11.2';

Example 3:

Suppose you only have two raw disks, but you still want 2 way mirroring of extents (and thus the files they comprise)
your diskgroup could be as simple as:

SQL> CREATE DISKGROUP DATA1 NORMAL REDUNDANCY
FAILGROUP grp1 DISK
'/dev/raw/raw3',
FAILGROUP grp2 DISK
'/dev/raw/raw5';

Example 4:

Suppose you have "external" redundancy in place. So ASM itself does not need "to worry about redundancy".
In that case, you DO NOT SPECIFY FAILGROUPS
Examples of those statements are:

CREATE DISKGROUP data EXTERNAL REDUNDANCY
DISK '/dev/d1', '/dev/d2', '/dev/d3';

Example 5: Create a Fast Recovery Area diskgroup

CREATE DISKGROUP fra NORMAL REDUNDANCY
DISK '/devices/diskc*';

3. Creation of Database objects and viewing them in ASM.

Now that you have diskgroups and ASM running, you want to create tablespaces on such a diskgroup.
Also, you want to take a view on "how it all looks like".

Here are some examples. These examples are done through a sqlplus session to the Regular Database instance.

Remember that when creating ASM objects like diskgroups, that should be done through a session to the ASM instance.
But once the needed diskgroups are in place and you want to create tablespaces or online redo logfiles
for your regular Database, you just connect to the regular Database instead of ASM.

SQL> CREATE TABLESPACE USER_DATA DATAFILE '+dskgrp1/user_data_01'
SIZE 1024M;
/

In the above example, you effectively say that you want a tablespace "USER_DATA"
in the diskgroup "dskgrp1". How ASM deals with all details, is left to ASM.

SQL> CREATE TABLESPACE my_ts DATAFILE '+disk_group_1' SIZE 100M AUTOEXTEND ON;

In the above example, you want to create a tablespace "my_ts" of initially 100M to be created in the diskgroup "disk_group_1".
Again, all details are left to ASM.

SQL> create tablespace TEST datafile '+ORAG2' ;

Above we created the tablespace "test" on the diskgroup "ORAG2".
Now you want to take a look how this all looks like, so you take a look at the usual v$datafile view:

SQL> select name from v$datafile;

NAME
----------------------------------------------
+ORADG/rac/datafile/system.264.600016955
+ORADG/rac/datafile/undotbs1.265.600016969
+ORADG/rac/datafile/sysaux.266.600016977
+ORADG/rac/datafile/users.268.600016987
+ORADG/rac/datafile/test.256.600137647

Or you can use the other relevant v$ views as well, like:

SQL> select name from v$controlfile;

+DATA1/rac0/controlfile/current.261.3
+DATA1/rac0/controlfile/current.260.3

Any Oracle ASM file is completely contained within a single diskgroup.
But, a certain diskgroup might contain files belonging to several databases,
and a single database can use files from multiple disk groups.

An ASM diskgroup can not only hold datafiles. The following list shows what can be stored in a diskgroup:

-Control files
-Data files, temporary data files, and data file copies
-SPFILEs
-Online redo logs, archive logs, and Flashback logs
-RMAN backups
-Disaster recovery configurations
-Change tracking bitmaps
-Data Pump dumpsets

ASM generates filenames according to the following scheme:

+diskGroupName/databaseName/fileType/fileTypeTag.file.incarnation

Above you have seen some listings, but here are a few examples:

+ORADG/rac/datafile/system.264.600016955
+dgroup2/test/controlfile/Current.256.541956472
+data/orcl/CONTROLFILE/Current.256.541956219

Templates:

Templates are collections of attribute values that are used for various things,
like file mirroring, and striping attributes etc.. for an Oracle ASM file when it is created.
When creating a file, you can include a template name and assign desired attributes
based on an individual file rather than the file type.
But a default template is provided for every Oracle file type, so you do not need
to do anything special. But if you must do so, you can customize templates to meet unique requirements.

4. Mounting and unmounting ASM diskgroups:

A disk group consists of a grouping of disks that are managed together as a unit. These disks are referred
to as ASM disks. Files written on ASM disks are ASM files, whose names are automatically generated
by Automatic Storage Management. You can specify user-friendly alias names for ASM files,
but you must create a hierarchical directory structure for these alias names.

An +ASM instance is a lightweigth instance which uses less resources compared to a regular instance.
It uses it's own ORACLE_HOME and also has a small init.ora/spfile.ora.
The following parameters relating to disks and disgroups are often used:

ASM_DISKSTRING
Limits the set of disks that Automatic Storage Management considers for discovery.
Default: NULL. This default causes ASM to find all of the disks in a platform-specific location to which
it has read/write access.).
Example: /dev/raw/*

ASM_DISKGROUPS
Lists the names of disk groups to be mounted by an ASM instance at startup,
or when the ALTER DISKGROUP ALL MOUNT statement is used.
Default: NULL (If this parameter is not specified, then no disk groups are mounted.)

-- Mounting and Dismounting Disk Groups:

Disk groups that are specified in the ASM_DISKGROUPS initialization parameter are mounted automatically
at ASM instance startup. This makes them available to all database instances running on the same node
as Automatic Storage Management. The disk groups are dismounted at ASM instance shutdown.
Automatic Storage Management also automatically mounts a disk group when you initially create it,
and dismounts a disk group if you drop it.

There may be times that you want to mount or dismount disk groups manually. For these actions use
the ALTER DISKGROUP ... MOUNT or ALTER DISKGROUP ... DISMOUNT statement. You can mount or dismount
disk groups by name, or specify ALL.

If you try to dismount a disk group that contains open files, the statement will fail, unless you also
specify the FORCE clause.

Examples:

The following statement dismounts all disk groups that are currently mounted to the ASM instance:

SQL> ALTER DISKGROUP ALL DISMOUNT;

The following statement mounts disk group dgroup1:

SQL> ALTER DISKGROUP dgroup1 MOUNT;

5. V$ASM_ views:

An ASM instance has no dictionary. But on all disks that are part of diskgroups,
the ASM instance will write metadata information in the first blocks of the disks,
(like e.g. to which diskgroup this disk is part of), and this information can be presented
through the socalled "v$ASM_" views.
Here are a few examples of the v$ASM views:

V$ASM_ALIAS Shows every alias for every disk group mounted by the ASM instance.

V$ASM_CLIENT Shows which database instance(s) are using any ASM disk groups that are being mounted by this ASM instance.

V$ASM_DISK Lists each disk discovered by the ASM instance, including disks that are not part of any ASM disk group.

V$ASM_DISKGROUP Describes information about ASM disk groups mounted by the ASM instance.

V$ASM_FILE Lists each ASM file in every ASM disk group mounted by the ASM instance.

V$ASM_OPERATION Like its counterpart in a normal Instance, V$SESSION_LONGOPS, it shows each long-running ASM operation in the ASM instance.

V$ASM_TEMPLATE Lists each template present in every ASM disk group mounted by the ASM instance.

V$ASM_DISK_IOSTAT List IO statistics for each ASM client, or instance.

6. Free Space / Used Space Disks ASM:

select substr(name,1,15), total_mb, free_mb
from v$asm_disk;

select
name,decode(type,'NORMAL',2,'HIGH',3,'EXTERN',1) Redundancy,
(total_mb/decode(type,'NORMAL',2,'HIGH',3,'EXTERN',1)) Total_MB,
(free_mb/decode(type,'NORMAL',2,'HIGH',3,'EXTERN',1)) Free_MB,
((free_mb/decode(type,'NORMAL',2,'HIGH',3,'EXTERN',1))/(total_mb/decode(type,'NORMAL',2,'HIGH',3,'EXTERN',1)))*100 "%Free"
from v$asm_diskgroup;

ASMCMD> lsdg

7. Moving files to ASM:

1. Using RMAN, and Database mounted.
------------------------------------

$ sqlplus '/as sysdba'
SQL> shutdown immediate;
SQL> startup mount;
SQL> select file#, name from v$datafile;

4..../disk1/oradata/users01.dbf

$ rman target=/

RMAN> copy datafile 4 to '+DGROUP2';

Now update the controlfiles:

RMAN> switch datafile 4 to copy;

The database may now be opened.

2. Using RMAN, and Database open.
---------------------------------

Same as above, but place the tablespace offline, perform the same steps,
and place the tablespace online again.

3. Using ASMCMD cp command, and Database open.
----------------------------------------------

SQL> alter system switch logfile;

SQL> select file_name, file_id from dba_data_files;

/disk1/oracle/oradata/test.dbf 6

SQL> alter database datafile 6 offline;

SQL> select file_name, file_id, online_status from dba_data_files where file_id=6;

/disk1/oracle/oradata/test.dbf 6 RECOVER

ASMCMD> cp /disk1/oracle/oradata/test1.dbf +DISKGRP1/PROD/DATAFILE/test.dbf

ASMCMD> cd +DISKGRP1/ASM/DATAFILE
ASMCMD> ls -lt

SQL> alter database rename file '/disk1/oracle/oradata/test.dbf' to '+DISKGRP1/PROD/DATAFILE/test.dbf';

SQL> alter database recover datafile 6;

SQL> alter database datafile 6 online;

40.2 ASM tools and special commands/actions:


1. ASMCMD:

It's a OS prompt utility. If you have logged on to the Host running the ASM Instance,
and you have set the correct environment variables, you can start it with the "asmcmd" command.
You must log in as a user that has SYSASM or SYSDBA privileges through operating system authentication.

For example on unix:

$ asmcmd
Or $ asmcmd --privilege sysasm

ASMCMD>
As of 10g, relatively simple navigation, listing, browsing commands were available like "cd", "ls" and some others.
Over time, now in 12c, the commandset has increased, and we will take that as our environment is this section.

You can "group" the commands into quite a few catagories, like "Instance management", or "file management" categories.

Some file management examples:

The "file management" commands are just like the ones in unix/linux (ls, mkdir, du, cd etc..), although more limited.
Here are a few examples:

ASMCMD [+] > ls +data/orcl/datafile

EXAMPLE.265.691577295
SYSAUX.257.691577149
SYSTEM.256.691577149
UNDOTBS1.258.691577151
USERS.259.691577151

You can also "create" directories using the "mkdir" command, for various types of storage.

Many commands, like "cp" and "lsof", are certainly very useful. For example, the "cp" command was added since 11gR1.

You can use the cp command to: -Copy files from a disk group to the operating system.
-Copy files from a disk group to another disk group.
-Copy files from the operating system to a disk group.

Examples:

ASMCMD [+] > cp +data/orcl/datafile/data1.265.691577295 /backups/data1.bak

ASMCMD [+] > cp +DATA/orcl/datafile/test.267.752424591 +DATA02/ORCL/DATAFILE


Some Instance management examples:

Startup/Shutdown:

Traditionally, using sqlplus with sysasm privilege:

$ sqlplus / as asmdba
startup

Or using ASMCMD (as of 11gR1):

asmcmd> startup

The shutdown sequence using ASMCMD is also quite similar to sqlplus.

Many examples are available in the Oracle online docs.
As of Oracle 11g, ASMCMD has a very extensive commandset, and you might want to do more explorations.
For further information, please visit the Oracle articles on ASMCMD.

40.3 Copy a controlfile on ASM to another Diskgroup:


Suppose you have only one controlfile. To get redundancy, you can use this procedure:

. oraenv (set the database sid / environment

sqlplus / as sysdba

SQL> select name from v$controlfile;

+DATADISK/TEST/controlfile/current.269.758046553

SQL> exit

Shutdown the dtabase:

Or:

SQL>shutdown immediate;

Or, in using one node RAC, or HAS, or Oracle Restart:

$ srvctl stop database -d TEST

Now, use RMAN to copy the control file:

$ rman target /

RMAN> startup nomount;

RMAN> restore controlfile to '+LOGDISK' from '+DATADISK/TEST/controlfile/current.269.758046553';

RMAN> exit

Now we must get the name of this controlfile copy, and put it in the spfile:

. oraenv (set the +ASM sid)

$ asmcmd -p

ASMCMD> cd LOGDISK/TEST/CONTROLFILE

ASMCMD [+LOGDISK/TEST/CONTROLFILE] > ls -l

current.263.758126875

ASMCMD [+LOGDISK/TEST/CONTROLFILE] > exit

$ sqlplus / as sysdba

The instance is started but still in unmount status.

SQL> alter system set control_files='+DATADISK/TEST/controlfile/current.269.758046553','+LOGDISK/TEST/CONTROLFILE/current.263.758126875' scope=spfile;

Restart the database in the usual manner.

After this procedure is completed, the controlfile is multiplexed between two diskgroups.



41. RMAN IN 12C:

In this note, RMAN already was already "covered" for 10g/11g in section 26: "26. A FEW 9i,10g,11g RMAN NOTES".
This treated some basic RMAN theory for Oracle 10g/11g.

I like to repeat it to a certain extend, but this time fully from the 12c perspective.

-You need to read section 26 first, since this section leans on the theory of section 26.
That's not wasted time, since all of section 26 is reusable in 12c.

-You need to know the basics of a CDB and PDB's as well: see section 36.

The more recent the Oracle version is, the more "natural" it is to perform actions from the Grid, or EM Control,
although a webbased EM was already available "since ancient 9i times".

Next to RMAN, we can also use (logical) Database exports (exp/imp or expdp/impdp), and many "Flashback" options.
This section however, only deals with RMAN.

For "point in time" recovery (e.g in tests), you can use the SCN identifier.
When possible, you can find the current one by using:

select timestamp_to_scn(sysdate) from v$database;

41.1 Quick overview Backup/Restore CDB and PDB's:

You can perform backup and recovery operations on the root, or a single pluggable database (PDB) or on multiple PDBs.

=>Connecting using RMAN to a CDB or PDB:

--connecting to the CDB root:

Connect to the "target" database using "sys" or common user, (or operating system authentication),
with SYSDBA or SYSBACKUP privilege.

$ rman target sys

$ rman target /

$ rman target c##admin@ORCL

RMAN> CONNECT TARGET "sys AS SYSBACKUP";

--connecting to a PDB:

Connect as a local user or common user with the SYSDBA privilege.

$ rman target prb1admin@prb1

=> Backup CDB or PDB's:

-- Backup only the root of CDB:

RMAN> BACKUP DATABASE ROOT;

-- Backup the whole CDB and putting it in archivelog mode:

oraenv
[enter cdb1 at the prompt]

sqlplus / as sysdba

shutdown immediate;

startup mount;

alter database archivelog;

alter database open;

alter pluggable database all open;

alter system set db_recovery_file_dest_size = 10G scope=both;

Set ORACLE_SID = cdb1

$ rman target /

RMAN> configure channel device type disk format '/backups/db_backup_files/cdb1/%U';

RMAN> configure controlfile autobackup on;

RMAN> backup database plus archivelog;


-- Backup one or more PDB's:

-If you are connected to the root:

RMAN> BACKUP PLUGGABLE DATABASE PDB1;

RMAN> BACKUP PLUGGABLE DATABASE PDB1, PDB2;

-If you are connected to PDB1:

RMAN> BACKUP DATABASE;

41.2 Quick overview Restore of a whole database:

Obviously, you will notice real quick what sort of file(s) are missing or damaged.
You can always look into the diagnostics files and alert.log.

-Validate the database with RMAN:

An alternative is to "validate" the database using RMAN.

RMAN> VALIDATE DATABASE;

This will report which datafile id is missing or damaged.

RMAN> REPORT SCHEMA;

This will also show which tablespace has problems.

-Usuable v$ views:

Many v$ views will help too, like for example:

SELECT FILE#, STATUS, ERROR, RECOVER, TABLESPACE_NAME, NAME
FROM V$DATAFILE_HEADER
WHERE RECOVER = 'YES'
OR (RECOVER IS NULL AND ERROR IS NOT NULL);

SELECT FILE#, ERROR, ONLINE_STATUS, CHANGE#, TIME
FROM V$RECOVER_FILE;

SELECT r.FILE# AS df#, d.NAME AS df_name, t.NAME AS tbsp_name,
d.STATUS, r.ERROR, r.CHANGE#, r.TIME
FROM V$RECOVER_FILE r, V$DATAFILE d, V$TABLESPACE t
WHERE t.TS# = d.TS#
AND d.FILE# = r.FILE#;

-Preview database backups:

RMAN> RESTORE DATABASE PREVIEW;
RMAN> RESTORE ARCHIVELOG FROM TIME 'SYSDATE-3' PREVIEW;
RMAN> RESTORE DATABASE PREVIEW SUMMARY;

-If you want to use another location for the archived redologs:

RUN
{
SET ARCHIVELOG DESTINATION TO '/oracle/temp';
RESTORE ARCHIVELOG ALL;
}

RUN
{
SET ARCHIVELOG DESTINATION TO '/oracle/temp';
RESTORE DATABASE;
RECOVER DATABASE; # restores and recovers logs automatically
}


Restore and recover the whole database:

If the database is not mounted, then mount but do not open the database.

STARTUP MOUNT;

If you are restoring all data files to their original locations,
then execute RESTORE DATABASE and RECOVER DATABASE sequentially at the RMAN prompt.

RMAN> RESTORE DATABASE;

RMAN> RECOVER DATABASE;

-With a channel defined:

RUN
{
ALLOCATE CHANNEL c1 DEVICE TYPE sbt;
RESTORE DATABASE;
RECOVER DATABASE;
}

If you are restoring some data files to new locations,
then execute RESTORE DATABASE and RECOVER DATABASE sequentially in a RUN command.
Use the SET NEWNAME command to rename data files (updates the control files).

RUN
{
SET NEWNAME FOR DATAFILE 3 TO '/oracle/data/d3.dbf';
SET NEWNAME FOR DATAFILE 4 TO '/oracle/data/d4.dbf';
SET NEWNAME FOR DATAFILE 5 TO '/oracle/data/d5.dbf';
RESTORE DATABASE;
SWITCH DATAFILE ALL;
RECOVER DATABASE;
}

41.3 Quick overview Restore of a PDB:

-- Restore a PDB to a SCN from a whole CDB backup:

SQL> alter pluggable database pdb2 close;

exit

$ rman target /

run {
set until SCN = 2263440 ;
restore pluggable database pdb2;
recover pluggable database pdb2 auxiliary destination='/oracle/db_backup_files/cdb1';
alter pluggable database pdb2 open resetlogs;
}

-- Restore a PDB from whole CDB backup:

SQL> drop pluggable database testpdb;

Pluggable database dropped.

RMAN> CONNECT TARGET "sys AS SYSBACKUP"; # connect to CDB

RMAN> backup database plus archivelog;

RMAN> CONNECT TARGET "sys AS SYSBACKUP";

RMAN> alter pluggable database testpdb close;

run {
set UNTIL TIME "to_date('2015-06-06:16:04:45','YYYY-MM-DD:HH24:MI:SS')" ;
restore pluggable database testpdb;
recover pluggable database testpdb auxiliary destination='/home/oracle/albert';
alter pluggable database testpdb open resetlogs;
}

With the “AUXILIARY DESTINATION” we specify space where Oracle can create a temporary cloned database.

41.4 Example Full DB restore of PROD to ACC or TST:

Suppose we have the 12c SALESPROD and SALESTEST databases, on the machines LINUXPROD and LINUXTEST.

In Test:

SQL> create pfile='/opt/oracle/admin/salestest/pfile/initsalestest.ora' from spfile;

cd /opt/oracle/admin/salestest/pfile/

vi initsalestest.ora

Change *.control_files='+DATADISK','+LOGDISK'

Check other in pfile, like UNDOTBS etc..

Shutdown Test.

SQL> shutdown immediate

Set environment to +ASM

$ +ASM

$ asmcmd
ASMCMD> cd +DATADISK/salestest
ASMCMD> ls
ASMCMD> rm -rf *
ASMCMD> cd +LOGDISK/salestest
ASMCMD> rm -rf *
ASMCMD> exit

Set environment to SALESTEST.

Startup test:

SQL> startup nomount pfile='/opt/oracle/admin/salestest/pfile/initsalestest.ora'

SQL> create spfile='+datadisk/salestest/spfilesalestest.ora’
from pfile=’/opt/oracle/admin/salestest/pfile/initsalestest.ora’

-- stil on target machine were the duplicate must go to...

SQL> shutdown immediate;
SQL> startup nomount

$ rman

-- on linux:

connect target sys/password@SALESPROD
connect auxiliary /

RMAN> run
{
allocate auxiliary channel ch1 type 'sbt_tape'
PARMS="BLKSIZE=262144,SBT_LIBRARY=/opt/simpana/Base/libobk.so";
set until time = "TO_DATE('12/10/2016 22:00:00','MM/DD/YYYY HH24:MI:SS')" ;
DUPLICATE TARGET DATABASE TO salestest nofilenamecheck;
}

-- on Windows:

connect target sys/password@SALESPROD
connect auxiliary /

RMAN> run
{
allocate auxiliary channel ch1 type 'sbt_tape'
PARMS="BLKSIZE=262144,SBT_UNSETENV=0"
Trace 2;
set until time = "TO_DATE('12/10/2016 22:00:00','MM/DD/YYYY HH24:MI:SS')" ;
DUPLICATE TARGET DATABASE TO salestest nofilenamecheck;
}

RMAN> exit

Check v$datafile, v$controlfile, v$logfile etc..
Check archivelogging if needed.
Check app parameters etc.., parameter tables in DB, accounts etc..



42. ADR AND LOGGING IN 11g/12c:


42.1 How Logging was done in former versions, like 10g, 9i, and older versions:

Oracle RDBMS versions 10g and 9i (and older), all used the same structure for storing
the "alert.log" file, trace files, and other diagnostic information.

Especially the alert.log, was a flat ascii file, which was rather easy to open (cat, more etc..),
or to find special keywords (or ORA messages) in that file.

Suppose you have the 9i or 10g database "sales". As an example, the alert.log and user dumps would be stored
in a directory structure similar to the example (just an example) shown below.

Example directory layout for a 9i/10g instance:

Purpose.......location
ORACLE_BASE.../opt/app/oracle
ORACLE_HOME.../opt/app/oracle/product/9.2
TNS_ADMIN...../opt/app/oracle/product/9.2/network/admin
alertlog in.../opt/app/oracle/admin/sales/bdump
userdumps in../opt/app/oracle/admin/sales/udump
core dumps..../opt/app/oracle/admin/sales/cdump

For the upper example, the spfile.ora/init.ora file would contain the following parameters:

BACKGROUND_DUMP_DEST= /opt/app/oracle/admin/sales/bdump
USER_DUMP_DEST= /opt/app/oracle/admin/sales/udump
CORE_DUMP_DEST= /opt/app/oracle/admin/sales/cdump

alert.log file in BACKGROUND_DUMP_DEST:
Most notably is the "alert.log" file, which is a plain ascii file, and which logs significant database events and messages.
It contains messages about startup's, shutdown, serious database/instance errors, as well as the creation or alteration of
database structures (like tablespaces).

trace files in USER_DUMP_DEST:
If user server processes encountered en error condition, a (ascii) trace file might have been generated.
This file would contain certain diagnostic information, and possibly the SQL statement that was involved.

42.2 Since 11g, and in 12c, we have ADR:

Since 11g, it all has changed. In 11g/12c, ADR or Automatic Diagnostic Repository is used.
12c has some modifications and enhancements, but most of the theme was introduced in 11g.

In 11g/12c, new are the "Automatic Diagnostic Repository" (ADR) and "Incident Packaging System" (IPS),
all designed collect alert and diagnostic information.

The location of ADR is specified by the DIAGNOSTIC_DEST initialization parameter.
The BACKGROUND_DUMP_DEST and USER_DUMP_DEST are now deprecated and replaced by DIAGNOSTIC_DEST.

-The environment variable $ADR_BASE points to the directory set by DIAGNOSTIC_DEST,
which is the higest level directory, which contains all ADR diagnostic subdirectories of all databases/instances or services.

-The variable $ADR_HOME points to an instance specific directory.

You can use the SHOW PARAMETER command, or query v$diag_info.

SQL> SHOW PARAMETER DIAG

NAME......................TYPE........VALUE
. diagnostic_dest...........string......C:\ORACLE

SQL> select SUBSTR(NAME,1,20) as NAME, SUBSTR(VALUE,1,70) as VALUE FROM v$diag_info;

(Windows Example:)

NAME.................VALUE
Diag Enabled.........TRUE
ADR Base.............c:\oracle
ADR Home.............c:\oracle\diag\rdbms\test11g\test11g
Diag Trace............c:\oracle\diag\rdbms\test11g\test11g\trace
Diag Alert............c:\oracle\diag\rdbms\test11g\test11g\alert
Diag Incident.........c:\oracle\diag\rdbms\test11g\test11g\incident
Diag Cdump............c:\oracle\diag\rdbms\test11g\test11g\cdump
Health Monitor........c:\oracle\diag\rdbms\test11g\test11g\hm
Default Trace File....c:\oracle\diag\rdbms\test11g\test11g\trace\test11g_ora_1704.trc
Active Problem Count 2
Active Incident Coun 3

log.xml alert log file:

The 11g/12c alert.log file, called "log.xml", is in XML format.
It is located in:

$ADR_BASE/diag/rdbms/database_name/instance_name/alert

or, which is the same, in:

[DIAGNOSTIC_DEST]/diag/rdbms/database_name/instance_name/alert

or, for a specific ADR_HOME, in:

$ADR_HOME/alert

You can view the log.xml with any text editor (bit silly), but an official (and better) interface to the ADR exists as well:
namely, you can use the "ADR command interface" adrci commandline tool.

A traditional text based alert.log can be found in:
"$ADR_BASE/diag/rdbms/database_name/instance_name/trace"

In 12c, explicit DDL logging can be enabled.

If you set the ENABLE_DDL_LOGGING parameter to TRUE, it will activate DDL logging.
All DDL statements are logged into a plain text file and an XML file in the following ADR locations:

$ADR_BASE/diag/rdbms/{DB-name}/{SID}/log/ddl_{SID}.log
$ADR_BASE/diag/rdbms/{DB-name}/{SID}/log/ddl/log.xml

42.3 The ADR Command Interpreter (ADRCI) Utility:

ADRCI is a command line utility that serves as the interface between you
and the ADR. You can do such things as view diagnostic data, view reports,
view alert logs, and even package the diagnostic information for sending to Oracle support.

You can invoke the "ADR command interface" by entering "adrci" from your OS prompt:

C:\>adrci

ADRCI: Release 12.1.0.2.0 - Production on Mon Nov 28 20:27:07 2016

Copyright (c) 1982, 2014, Oracle and/or its affiliates. All rights reserved.

ADR base = "E:\app\absr"
adrci>

If you want to know which subcommands you can enter in adrci, just enter "help" or "help topic" or "help extended".

One of the most obvious commands, is the SHOW ALERT commands, which you can use to browse through
the alert log. Here are a few examples:

adrci> SHOW ALERT -TAIL;
adrci> SHOW ALERT -TAIL 50;
adrci> SHOW ALERT -TAIL -F;
adrci> SHOW ALERT -P "MESSAGE_TEXT LIKE '%ORA-600%'"

Under ADR_BASE, multiple databases and SID's may be present.
As you know, there is (usually) only one ADR_BASE, while there might be multiple ADR_HOME's, one for every Instance.

When you start adrci, it does not make any assumption on your current interest of some instance.
So, if you would have this:

\diag\rdbms\sales\inst1\
\diag\rdbms\sales\inst2\

Then you use the SET HOMEPATH command to set one or more ADR homes to be current.
If ADR base is E:\app\oracle and you want to set the homepath to E:\app\oracle\diag\rdbms\sales\inst1\ , you would use this command:

adrci> set homepath diag\rdbms\sales\inst1\



43. MOVING DATABASE FILES:


Most of this holds for 10g and 11g too, apart from a few exceptions.

43.1 Moving controlfiles.:

Filesystems:

Since they are critical all the time, you need to temporarily shutdown the database before you move the files.

You can always easily view the current location, using:

SQL> select name from v$controlfile;

If you have a new disklocation, or new disklocations (filesystem), then you can work like the example below.

-Get and write down the original locations plus names from SHOW PARAMETER, or V$controlfile.
-Backup the spfile.
-Shutdown the database.
-startup nomount.
-Alter the pfile/spfile control_files parameter using the ALTER SYSTEM command.
-Shutdown the database.
-copy or move the physical files using an OS command.
-Startup the database.

SQL> shutdown immediate;

SQL>startup nomount;

SQL> alter system set control_files='/disk2/oradata/control01.ctl','/disk2/oradata/control02.ctl', '/disk2/oradata/control03.ctl' scope=SPFILE;

This is an example target location on the filesystem. The original location might have been /disk1.

SQL> shutdown immediate;

copy or move the physical files using an OS command.

SQL>startup nomount;

SQL>alter database mount;

SQL>startup database open;

ASM:

-Backup the spfile.
-Get and write down the original locations plus names from SHOW PARAMETER, or V$controlfile.
-Shutdown the database.
-startup nomount.
-Alter the pfile/spfile control_files parameter using the ALTER SYSTEM command.
-shutdown the database.
-startup nomount.
-rman target /
-RMAN> restore controlfile from 'OriginalLocation/OriginalName';

For example:

RMAN> restore controlfile to '+DG1' from '/disk2/oradata/control01.ctl';

Here only the name of the diskgroup is mentioned if OMF is used.

-alter database mount.
-alter database open.

Multiplex a controlfile on ASM:

Suppose you only have:

SQL> select name from v$controlfile;

NAME
+FRA/PROD/controlfile/current.269.11278453

shutdown immediate;
startup nomount;

rman target /

RMAN> restore controlfile to '+DATADG' from '+FRA/PROD/controlfile/current.269.11278453';

Use ASMCMD to get the name of the new controlfile copy.

Use the ALTER SYSTEM command to update the controlfile locations.

shutdown immediate;
startup;

43.2 Moving Datafiles:


In 43.2, we use the traditional commands, and not yet using the 12c online "ALTER DATABASE MOVE DATAFILE" statement.
See section 43.3 for that statement.

-- Just a user tablespace on filesystem:

ALTER TABLESPACE users OFFLINE NORMAL;

Copy or move the files of that tablespace to a new location.

ALTER TABLESPACE users RENAME DATAFILE 'oldpath1/file1','oldpath2/file2,
TO 'newpath1/file1','newpath2/file2,

-- Just a user tablespace to ASM:

SQL> ALTER TABLESPACE TEST OFFLINE;

RMAN> copy datafile '/u01/oradata/test/test01.dbf' to '+DATADG';

SQL> alter database rename file '/u01/oradata/test/test01.dbf' to '+DATADG/PROD/datafile/test.263.625644857';

or:

RMAN> copy datafile 6 to '+DATADG';
RMAN> sql 'alter database datafile 6 offline';
RMAN> switch datafile 6 to copy;
RMAN> recover datafile 6;
RMAN> sql 'alter database datafile 6 online';

-- Moving system tablespace to (or move to different place on) ASM:

SQL> startup mount;

$ rman target /

RMAN> run
{
backup as copy datafile 1 format '+DATA'; --system
backup as copy datafile 2 format '+DATA'; --sysaux
backup as copy datafile 4 format '+DATA'; --users
}

RMAN> switch datafile 1 to copy;

datafile 1 switched to datafile copy "+DATA/prod/datafile/system.279.872015923"
RMAN> switch datafile 2 to copy;

datafile 2 switched to datafile copy "+DATA/prod/datafile/sysaux.282.872015985"
RMAN> switch datafile 4 to copy;

datafile 4 switched to datafile copy "+DATA/prod/datafile/users.283.872016031"

SQL> shutdown immediate;

SQL>startup;

43.3 THE 12C ALTER DATABASE MOVE DATAFILE:

This SQL command exists as of 12c, and can be used while the DB or datafile are online.

SQL> ALTER DATABASE MOVE DATAFILE '/u01/app/oracle/oradata/cdb/system01.dbf' TO
'/u02/app/oracle/oradata/cdb/system01.dbf';

SQL> ALTER DATABASE MOVE DATAFILE 1 TO '/u02/app/oracle/oradata/cdb1/system01.dbf' KEEP;

Keep: the original file is not deleted.
Reuse: if the destination file was already present, then reuse it.

If using OMF, the destination can be omitted.

SQL> ALTER SYSTEM SET db_create_file_dest='/disk1/app/oracle/oradata/cdb1';

SQL> ALTER DATABASE MOVE DATAFILE '/u01/app/oracle/oradata/cdb1/system01.dbf';

Notes:

If working with files of a PDB, then the commands given from the CDB will give errors.
You can switch to the PDB container first.

The ALTER DATABASE MOVE DATAFILE syntax does not work for temporary files.



44. DATAGUARD 11g/12c:


If possible, the data files, log files, and control files on the primary and standby systems
should preferrably have the same names and path names. The archival directories on the standby database
should also be identical between sites, including size and structure. This is the best strategy.

We have the Primary database, which is fully open for transactions.
Here, redo is generated, archived, but also streamed to Standby databases.

-Physical standby should have the same structure as the Primary, and Redo Apply is used.
-Logical standby uses SQL statements, which are generated from the Redo stream.

You can use the DB_FILE_NAME_CONVERT and LOG_FILE_NAME_CONVERT initialization parameters on the standby database
to automatically rename the data files, in case new files are created on the Primary, and the structures on
the Standby are not identical (e.g. directory paths etc..).

Scenario:

Suppose we have:

Primary: DB_NAME and NET Serive name is: CENTRAL
Physical standby: DB_NAME and NET Serive name is: SOUTH


-Preparing the Primary:

SQL> ALTER DATABASE FORCE LOGGING;

Configure OID, SSL etc.., or same password file on all nodes.

Configure the Primary to be ready to quickly transition to the standby role and begin receiving redo data.

SQL> ALTER DATABASE ADD STANDBY LOGFILE ('/u01/oracle/dbs/log1.rdo') SIZE 500M;
SQL> ALTER DATABASE ADD STANDBY LOGFILE ('/u01/oracle/dbs/log2.rdo') SIZE 500M;

init.ora/spfile.ora parameters:

DB_NAME=CENTRAL
DB_UNIQUE_NAME=CENTRAL
LOG_ARCHIVE_CONFIG='DG_CONFIG=(CENTRAL,SOUTH)'
CONTROL_FILES='/arch1/central/control1.ctl', '/arch2/central/control2.ctl'
LOG_ARCHIVE_DEST_1= 'LOCATION=USE_DB_RECOVERY_FILE_DEST VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=CENTRAL'
LOG_ARCHIVE_DEST_2= 'SERVICE=SOUTH ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=SOUTH'
REMOTE_LOGIN_PASSWORDFILE=EXCLUSIVE
LOG_ARCHIVE_FORMAT=%t_%s_%r.arc

A database in a Data Guard environment is uniquely identified by means of the DB_UNIQUE_NAME parameter.

When a role switch occurs, the following must be in place too.

FAL_SERVER=SOUTH
DB_FILE_NAME_CONVERT='/SOUTH/','/CENTRAL/'
LOG_FILE_NAME_CONVERT='/SOUTH/','/CENTRAL/'
STANDBY_FILE_MANAGEMENT=AUTO

Put database in archive mode:

SQL> SHUTDOWN IMMEDIATE;
SQL> STARTUP MOUNT;
SQL> ALTER DATABASE ARCHIVELOG;
SQL> ALTER DATABASE OPEN;

--Creating a Physical Standby Database:

Tasks:

Create a Backup Copy of the Primary Database Data Files. At Primary.
Create a Control File for the Standby Database. At Primary.
Create a Parameter File for the Standby Database. At Primary.
Copy Files from the Primary System to the Standby System. At Primary.
Set Up the Environment to Support the Standby Database. At Standby.
Start the Physical Standby Database. At Standby.
Verify the Physical Standby Database Is Performing Properly. At Standby.

1. Create a Backup Copy of the Primary Database Data Files.
You can use any backup, as long as all archives are there too to completely recover the Standby database.

2. Create a Control File for the Standby Database.

SQL> ALTER DATABASE CREATE STANDBY CONTROLFILE AS '/tmp/south.ctl';

3. Create a Parameter File for the Standby Database.

SQL> CREATE PFILE='/tmp/initsouth.ora' FROM SPFILE;

This is done on the Primary. Ofcourse some parameter modifications needs to be done.

DB_NAME=CENTRAL
DB_UNIQUE_NAME=SOUTH
LOG_ARCHIVE_CONFIG='DG_CONFIG=(CENTRAL,SOUTH)'
CONTROL_FILES='/arch1/south/control1.ctl', '/arch2/south/control2.ctl'
DB_FILE_NAME_CONVERT='/central/','/south/'
LOG_FILE_NAME_CONVERT='/central/','/south/'
LOG_ARCHIVE_FORMAT=log%t_%s_%r.arc
LOG_ARCHIVE_DEST_1= 'LOCATION=USE_DB_RECOVERY_FILE_DEST VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=SOUTH'
LOG_ARCHIVE_DEST_2= 'SERVICE=CENTRAL ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=CENTRAL'
REMOTE_LOGIN_PASSWORDFILE=EXCLUSIVE
STANDBY_FILE_MANAGEMENT=AUTO
FAL_SERVER=CENTRAL

4. Copy Files from the Primary System to the Standby System.

In the appropriate dirs on the standby node, optionally copy the backup of (1),
copy the init.ora, remote passwordfile, and controlfile copy.
For applying the backup, multiple techniques exist, like an RMAN duplicate.

5. Set Up the Environment to Support the Standby Database.

This means that we need an Instance, and make the spfile at the Standby active.

6. Start the Physical Standby Database.

At standby:

SQL> STARTUP MOUNT;

And restore the database.

Start the REDO apply:

SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE -
> DISCONNECT FROM SESSION;

Verify that redo is applied:

SQL> SELECT CLIENT_PROCESS, PROCESS, THREAD#, SEQUENCE#, STATUS FROM
V$MANAGED_STANDBY WHERE CLIENT_PROCESS='LGWR' OR PROCESS='MRP0';

-Creating a duplicate database with RMAN:

You can use either manual techniques or the RMAN DUPLICATE command in order
to create a standby database.


- from backups of your primary database.
- from the active database.

You can choose between active and backup-based duplication. If you specify FROM ACTIVE DATABASE,
then RMAN will copy the datafiles directly from the primary database to the standby database.
In this case, the primary database must be mounted or open.

The difference is by the "FROM ACTIVE DATABASE" clause. If it's not in the command,
then RMAN performs backup-based duplication.

Start the "Standby instance" on using "startup nomount pfile=path_to_pfile" Now start an RMAN session like so:

RMAN> connect target sys@DB1
RMAN> connect catalog catalogowner@catalogdb
RMAN> connect auxiliary sys@DB2
RMAN> duplicate target database for standby from active database;

Due to the "for standby" keywords, the database will get a unique DBID.

Per default, RMAN does not recover the database. Use the DORECOVER option of the DUPLICATE command
to specify that RMAN should recover the standby database.

For using the active database option, a script like below can be used:

RMAN> DUPLICATE TARGET DATABASE FOR STANDBY FROM ACTIVE DATABASE
DORECOVER
SPFILE
SET "db_unique_name"="SOUTH" COMMENT ''The Standby''
SET LOG_ARCHIVE_DEST_2="service=SOUTH ASYNC REGISTER
VALID_FOR=(online_logfile,primary_role)"
SET FAL_SERVER="CENTRAL" COMMENT "Is primary"
NOFILENAMECHECK;

--Switchover:

A "Failover" in DG terminology happens, when the Primary fails, and a Standby takes over.

A "Switchover" happens when you manually perform a role switch, so that a Standby becomes the Primary.
This might happen, for example, just before a planned maintenance.

However, in many articles, the terms "Failover" and "Switchover" are used interchangebly.
This can be explained if you reserve switchover for any roleswitch. and failover if you switch the role
of the current primary.

In a Switchhover, the former primary becomes a Standby, and usually does not need to be rebuild.
In certain circumstances, at Failover, a former primary may need to be rebuild,
possibly due to the fact that it runs too far behind.

When not using Grid control (Enterprise Manager), SQL commands or DGMGRL commands, can be used
to perform a Switchover.

-Use a switchover to a physical standby database instead of a logical standby.
-Choose the node with the least un-applied redo. For that to investigate, you might try:

DGMGRL> SHOW DATABASE 'standbydb' 'RecvQEntries';
DGMGRL> SHOW DATABASE 'proddb' 'SendQEntries';

And use:

SQL> ALTER SESSION SET nls_date_format='DD-MON-YYYY HH24:MI:SS';

SQL> SELECT sequence#, first_time, next_time, applied FROM v$archived_log
ORDER BY sequence#;

A few other subcommands in the DGMGRL shell:

DGMGRL> connect sys/password

DGMGRL> SHOW CONFIGURATION;

DGMGRL> SHOW DATABASE VERBOSE 'CENTRAL';
DGMGRL> SHOW DATABASE VERBOSE 'SOUTH';

Use the SWITCHOVER command to swap the roles of the primary and standby database.

DGMGRL> switchover to 'SOUTH';

Or using sqlplus:

--primary:

SQL> alter database commit to switchover to standby;
Database altered.

SQL> shutdown immediate;

SQL> startup nomount

SQL> alter database mount standby database;

SQL> alter database recover managed standby database disconnect from session;

--standby:

SQL> alter database commit to switchover to primary;

SQL> shutdown immediate;

SQL> startup

SQL> select name,open_mode,database_role from v$database;

As a test, generate some logs and see if they go to the new standby.



45. SHOW OFTEN ACCESSED TABLES AND INDEXES (10g/11g/12c):


- Quick adhoc check on accessed onbjects:

SELECT d.OBJECT_ID, substr(OBJECT_NAME,1,20), l.SESSION_ID, l.ORACLE_USERNAME, l.LOCKED_MODE
FROM v$locked_object l, dba_objects d
WHERE d.OBJECT_ID=l.OBJECT_ID;

- Quick adhoc check on waiting sessions:

SELECT waiting_session, holding_session, lock_type, mode_held
FROM dba_waiters;

- Determining frequently accessed objects by physical reads or writes from v$segment_statistics:

Replace the 'OBJECT_OWNER' below, with a real object owner or schema name.

SELECT *
FROM v$segment_statistics
WHERE owner = 'OBJECT_OWNER'
AND
statistic_name='physical read requests'
order by value desc;

SELECT *
FROM v$segment_statistics
WHERE owner = 'OBJECT_OWNER'
AND
statistic_name='physical write requests'

Example:

SELECT * FROM v$segment_statistics WHERE owner = 'SALES'
AND statistic_name='physical read requests' order by value desc;

- Determining frequently accessed objects by physical reads or writes from v$sql_plan:

You may observe that v$sql_plan has a considerable numbr of rows, and not all "fields" have a value,
since v$sql_plan is a view on data from the library cache.

SELECT COUNT (*), object_name
FROM v$sql_plan
WHERE operation = 'TABLE ACCESS'
GROUP BY object_name
ORDER BY COUNT (*) DESC;

-Some other pointers:

- DBA_TABLES: num_rows

If the statistics are "reaonable"up-to-date, then "num_rows" from dba_tables may provide a clue too,
as a reasonable pointer to often used tables.

select substr(owner,1,20), substr(table_name,1,30), num_rows
from dba_tables where owner not in ('SYS','SYSTEM', 'DBSNMP', 'MDSYS')
order by num_rows desc;

- v$bh and DBA_OBJECTS and num_rows: pages in memory

column c0 heading 'Owner' format a15
column c1 heading 'Object|Name' format a30
column c2 heading 'Number|of|Buffers' format 999,999
column c3 heading 'Percentage|of Data|Buffer' format 999,999,999

select
owner c0,
object_name c1,
count(1) c2,
(count(1)/(select count(*) from v$bh)) *100 c3
from
dba_objects o,
v$bh bh
where
o.object_id = bh.objd
and
o.owner in ('THE_OWNER') -- fill in the schema, or set of schema's.
group by
owner,
object_name
order by
count(1) desc
;

You can also track table usage with EM and AWR.



46. SHOW PERMISSIONS AND GRANT STATEMENTS (10g/11g/12c):


Most user and role permission information can be found in the system views:

DBA_ROLE_PRIVS
DBA_SYS_PRIVS
DBA_TAB_PRIVS

Simple Examples:

grantee: the account who received the permissions.

-- List the privileges granted to CHARLIE.

SELECT substr(grantee, 1, 15), substr(privilege, 1, 40), admin_option
FROM DBA_SYS_PRIVS WHERE grantee='CHARLIE';

SELECT * FROM dba_sys_privs WHERE grantee='CHARLIE';

-- List all sys privileges.

SELECT * FROM dba_sys_privs

-- List all roles given to a certain user:

SELECT * from dba_role_privs WHERE grantee = 'CHARLIE';

-- List which tables a certain role like SALES_ROLE gives SELECT access to:

SELECT * from role_tab_privs WHERE role='SALES_ROLE' and privilege = 'SELECT';

Other Examples:

-- Granting permissions to a role or user for a set of objects:

SELECT 'GRANT SELECT ON HR.'||table_name||' TO ROLE_READONLY;' from dba_tables
where owner='HR';

SELECT 'GRANT SELECT ON HR.'||view_name||' TO ROLE_READONLY;' from dba_views
where owner='HR';

SELECT 'GRANT SELECT, INSERT, UPDATE, DELETE ON NiceApp.'||table_name||' TO Albert;' from dba_tables
where owner='NiceApp';

-- Create a List of GRANT statements of Roles to users:

SELECT 'GRANT '||GRANTED_ROLE||' TO '||GRANTEE
FROM dba_role_privs;



47. EXPDP AND IMPDP export and import utilities (10g/11g/12c):


The best database backups can be made using RMAN.
So, when talking about backup/recovery procedures, or HA and DR, then RMAN is the way to go.
However, the backups made by RMAN, if you do a restore, overwrites the former database.

With the prompt utility "expdp", you can export objects to a file, and the most important objects you might want to export are:

-One or more tables.
-A schema, including all objects in that schema (account).
-A full database export.
-Metadata (like tablespace metadata, or security/grants etc..).

This is extremely flexible. For example, it may happen that you must export some schema from Production to
a development system. Or you must export some tables from Production to a development system, or to a DWH etc..

Using the prompt utility "impdp" you can import the the content of the file(s) created by "expdp",
into a target database.

47.1 The DIRECTORY Object:

One important thing is, that both tools use a socalled "DIRECTORY", defined in the database.
This Oracle object (metadata), then "points" to a real physical "path" somewhere in the filesystem.
So, the DIRECTORY is only metadata in the database, which refers to a real physical path.

On the system where you will do the export, a DIRECTORY object must exist.
The same is true for the target system, where you will do the import.
Thus: on both the source instance, and the target instance, a DIRECTORY needs to exist.
The path ofcourse may differ on both machines, since the source and targets are often different databases
on seperate machines (or VM's).

So for example, on the system where you will do the export, logon as sysdba, and use SQL commands like:

CREATE OR REPLACE DIRECTORY DATAPUMP AS '/orabackup/mydatabase';

GRANT READ, WRITE ON DIRECTORY DATAPUMP TO PUBLIC;

And on the target system, you might have defined the DIRECTORY object as:

CREATE OR REPLACE DIRECTORY DATAPUMP AS '/backup';

GRANT READ, WRITE ON DIRECTORY DATAPUMP TO PUBLIC;

The examples above, you might have used on Linux/Unix systems. For Windows, we have similar SQL,
but ofcourse only the file system path would be different.

So, for example, for a Windows system you might have used:

CREATE OR REPLACE DIRECTORY DATAPUMP AS 'R:\DATAPUMP';

GRANT READ, WRITE ON DIRECTORY DATAPUMP TO PUBLIC;

47.2 Some simple examples using expdp:

It's a Operating system prompt utility, so before you use it, set the environment just as you would normally
do when e.g., using sqlplus (for example, setting the ORACLE_HOME and ORACLE_SID variables).

-Exporting a full schema to a file:

C:\> expdp system/password@myinstance1 directory=DATAPUMP exclude=statistics schemas=HR dumpfile=HR.DMP logfile=HR.log

-Exporting a full database to a file:

C:\> expdp system/password@myinstance1 full=Y directory=DATAPUMP dumpfile=myinstance.dmp logfile=myinstance.log

-Exporting a TABLE to a file:

C:\> expdp system/password@myinstance1 directory=DATAPUMP exclude=statistics tables=AGE.AGE_PARAM dumpfile=AGE_PARAM.dmp logfile=AGE_PARAM.log compression=none

47.3 Some simple examples using impdp on the target machine:

-Importing a TABLE using an export file:

Maybe you want to drop the original table (in the target database) first, if it already exists.

SQL> drop table AGE.AGE_PARAM;

C:\> impdp system/password@myinstance2 directory=DATAPUMP tables=AGE.AGE_PARAM dumpfile=AGE_PARAM.dmp logfile=AGE_PARAM.log

-Importing a FULL SCHEMA using an export file:

Maybe you want to drop the original SCHEMA (in the target database) first, if it already exists.

SQL> drop user HR cascade;

C:\> impdp system/password@myinstance2 directory=DATAPUMP schemas=HR dumpfile=HR.dmp logfile=hr.log

-Importing a FULL SCHEMA, but the load must go to another SCHEMA:

Suppose on INST1 you have created an export of the HR schema. However, on INST2 this needs to be loaded
into the HARRY schema:

C:\> impdp system/password@myinstance2 directory=DATAPUMP dumpfile=hr.dmp REMAP_SCHEMA=hr:harry logfile=harry.log

47.4 Some simple examples using PARALLELE import or export

It's possible to use multiple server sesssion for the export and import, like 2 or 4 sessions.
However, at the export, the same number of export files will be created.
You can significantly increase the speed of the export or import, using the "parallel" option.
However, evaluate the parallel option with respect to the number of available CPU cores.

And ofcourse, when doing the import at the target, you must take into account that you have multiple importfiles.

Althoug almost all options (like parallel) can be used on the commandline itself, when the number of parameters are
getting huge, it's best to use a "parameter file" (.par file) which specifies all options.
In that case, the actual command on the commandline can be rather lean.

Example:

In D:\Admin\scripts, we have created a parameterfile exphr.par like:

directory=DATAPUMP
logfile=exp_HR.log
dumpfile=exp_HR%u.dmp
parallel=2
EXCLUDE=STATISTICS
compression=none
SCHEMAS=HR

Note parameter=2 option. This means that 2 servers session will go to work, creating 2 exportfiles.
The %u will determine the names of the files. In this example, the exports will be files "exp_HR1.dmp" and "exp_HR2.dmp".

Now we can start the export, by simply using:

D:\Admin\scripts> expdp system/password@myinstance1 parfile=exphr.par

Importing:

At the target, you create a similar parfile. Make sure that the dumpfile parameter uses the same name, like e.g. dumpfile=exp_HR%u.dmp.

The import can then be as simple as:

C:\Admin\scripts> impdp system/password@myinstance2 parfile=imphr.par

47.5 Errorlogging.

Both expdp and impdp must be use with a "logfile=" parameter, either on the commandline, or specified in a parfile.

You can view all possible errors after the export, or import, viewing that logfile.
Tables and table data, are the most important and that almost never goes wrong. However, occasionally,
and index may fail to be created at the import, and such similar failures. This can be quite easily repaired
after the import is done. However, some "types" of data may fail too, such as Spatial (GIS) data, LOBs, and then more
refined techniques must be used to repair objects after an import.

But ususally, certainly when dealing with tables with character/nummeric data, and regular indexes, regular PK/FK, etc..
expdp and impdp work fine.

After an import of a FULL schema, or even a full database, it's best to check on invalid objects, and recompile them, using:

SELECT 'ALTER '||decode( object_type,
'PACKAGE SPECIFICATION'
,'PACKAGE'
,'PACKAGE BODY'
,'PACKAGE'
,object_type)
||' '||owner
||'.'|| object_name ||' COMPILE '
||decode( object_type,
'PACKAGE SPECIFICATION'
,'SPECIFACTION'
,'PACKAGE BODY'
,'BODY'
, NULL) ||';'
FROM dba_objects WHERE status = 'INVALID';

The statements generated above, can be easily "pasted" into TOAD, or SQL Developer, or sqlplus,
in order to recompile as much as possible objects.

47.6 Showing progress while expdp or impdb is running.

There are a few general queries, and also some special metadata views, showing the progress and status of impdp and expdp.

For example:

select * from DBA_DATAPUMP_JOBS;

select * from DBA_DATAPUMP_SESSIONS;

And ofcourse, you can creat a join on V$SESSION_LONGOPS and V$DATAPUMP_JOB, or simply only use V$SESSION_LOGOPS.
See section 13 for more information on V$SESSION_LONGOPS.
